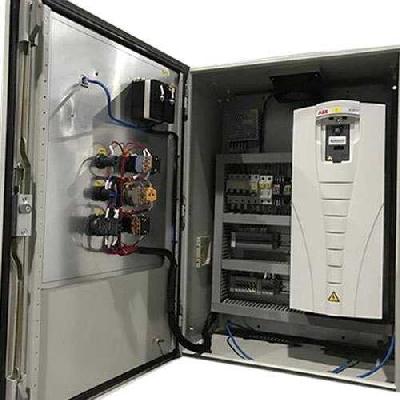

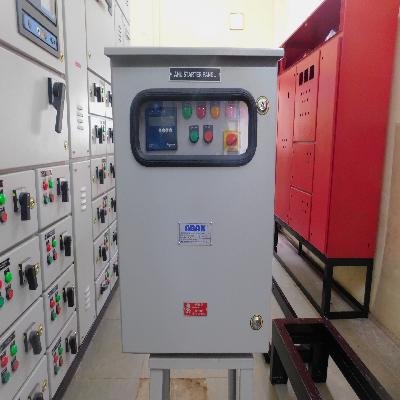

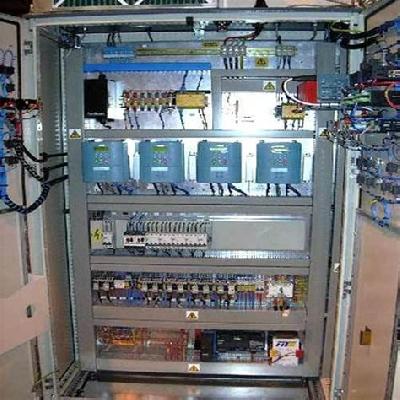

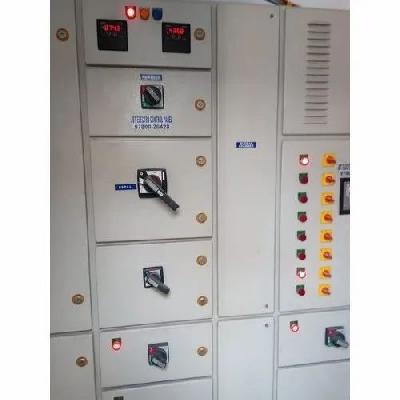

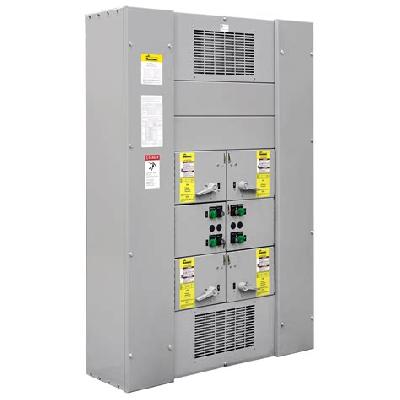

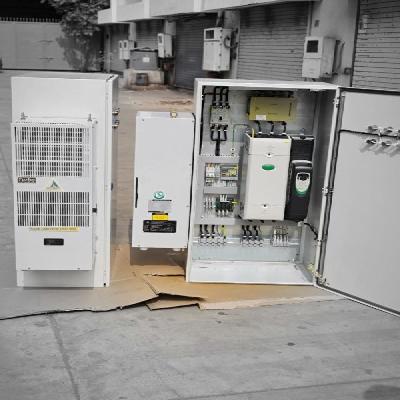

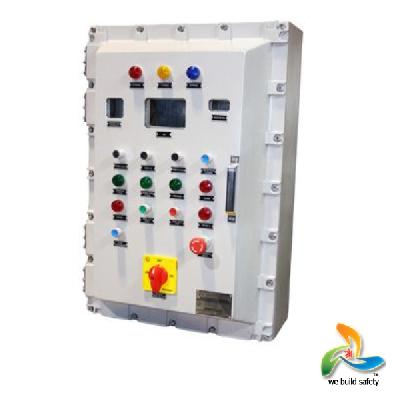

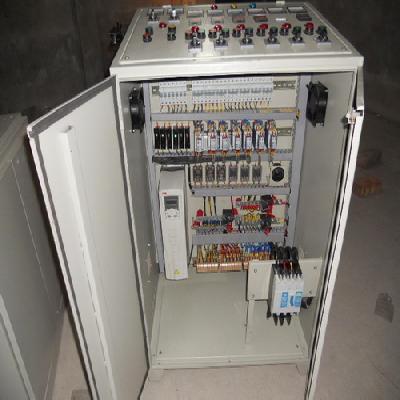

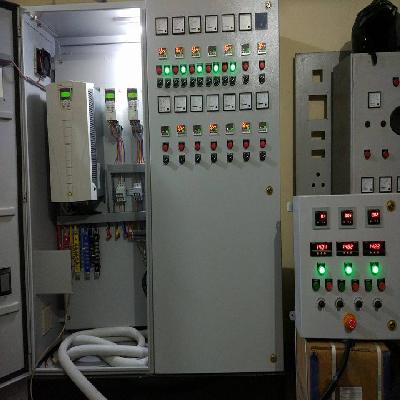

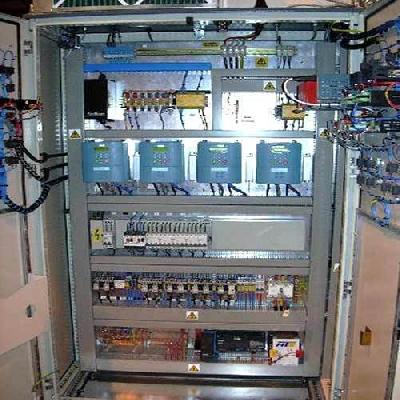

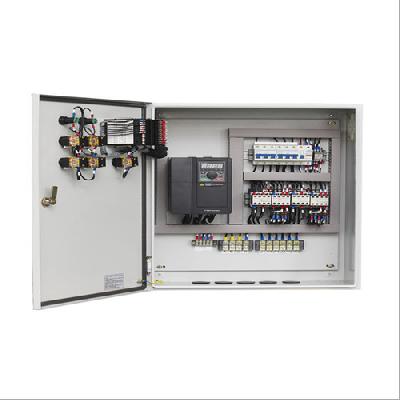

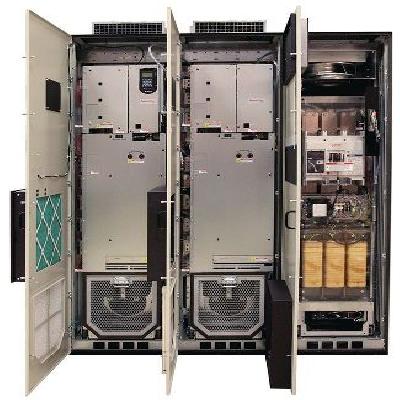

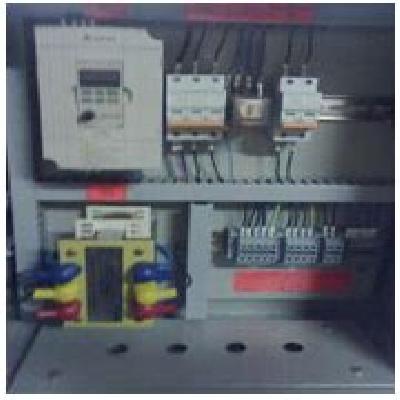

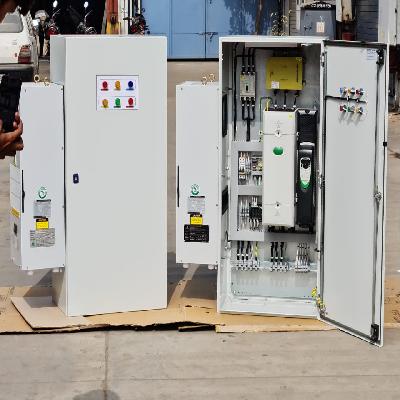

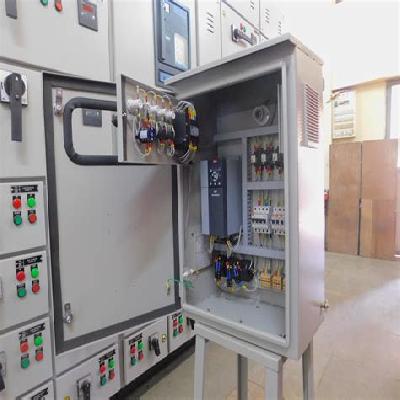

Ac drive panels are a type of electrical control panel that uses alternating current (AC) to regulate and optimize the performance of industrial equipment. These panels are designed to provide precise control over motor speed, torque, and direction, making them essential for various applications in industries such as manufacturing, mining, and oil refining.
Where To Use Ac Drive Panels
Ac drive panels are commonly used in applications where high accuracy, reliability, and efficiency are required. Some of the industries that use ac drive panels include:
Pulp and Paper Industry
Textile Industry
Cement Industry
Chemical Processing Plants
Key Features Of Ac Drive Panels
Some of the key features of ac drive panels include:
High precision control over motor speed and torque
Energy efficiency through optimized power consumption
Reliability and durability due to robust design and construction
Easy installation and commissioning
Flexibility in configuration and customization
How To Use Ac Drive Panels
To use ac drive panels effectively, follow these steps:
Select the appropriate ac drive panel for your application based on voltage rating, frequency, power rating, and other specifications
Configure the ac drive panel according to the manufacturer's instructions and guidelines
Ensure proper installation and commissioning of the ac drive panel
Monitor and adjust the ac drive panel settings as needed to optimize performance and efficiency
How Ac Drive Panels Is Manufactured
The manufacturing process of ac drive panels involves several stages, including design and development, component sourcing and procurement, assembly and testing, and quality control. The panels are manufactured using high-quality materials and components to ensure reliability and durability.
Technical Specification Of Ac Drive Panels
Voltage Rating:
380V - 660V
Frequency:
50Hz - 60Hz
Power Rating:
5kW - 500kW
Current Rating:
10A - 1000A
Number of Phases:
3-Phase
Material:
Stainless Steel, Aluminum
Mounting Type:
Wall-Mounted, Floor-Standing
The technical specifications of ac drive panels are designed to provide a high level of accuracy and reliability in industrial applications. The specifications include voltage rating, frequency, power rating, current rating, number of phases, material, and mounting type. These specifications enable the selection of the appropriate ac drive panel for a specific application, ensuring optimal performance and efficiency.
Description Of Ac Drive Panels
Ac drive panels are designed to provide precise control over industrial equipment, optimizing performance and efficiency in various applications.
