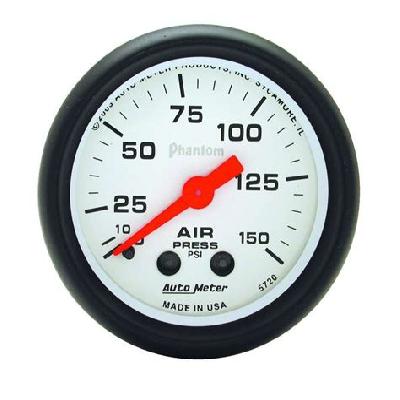

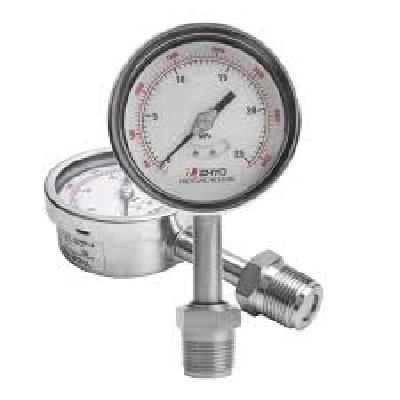

Analog pressure gauge is a device used to measure and indicate the pressure of a fluid in a system. It works by using a mechanical mechanism that converts the pressure into a rotational motion, which is then displayed on a dial or scale.
Where To Use Analog Pressure Gauge
Analog pressure gauges are commonly used in industrial settings, such as in power plants, chemical processing plants, and oil refineries. They can also be found in laboratories, research facilities, and medical institutions.
Key Features Of Analog Pressure Gauge
Accurate pressure measurement
Durable and long-lasting construction
Easy to read and understand dial or scale
Wide range of pressure measurement capabilities
Compact and space-saving design
How To Use Analog Pressure Gauge
Mount the gauge in a secure location, ensuring it is level and stable
Connect the gauge to the system using the appropriate connections
Set the zero point of the gauge according to the manufacturer's instructions
Take regular readings of the pressure using the dial or scale
Record and analyze the data for further use
How Analog Pressure Gauge Is Manufactured
The manufacturing process of analog pressure gauges involves several stages, including design and prototyping, material selection and procurement, machining and assembly, testing and quality control.
Technical Specification Of Analog Pressure Gauge
Pressure Range:
0-10 bar
Display Type:
Analog dial with pointer
Connection Type:
1/2" NPT
Dial Size:
100mm diameter
Material:
Stainless steel and brass
The technical specifications of the analog pressure gauge are designed to provide accurate and reliable measurement of pressure in a variety of industrial settings. The gauge's pressure range, display type, connection type, dial size, and material all work together to ensure precise measurement and durability.
Description Of Analog Pressure Gauge
The analog pressure gauge is a compact and easy-to-use device that provides accurate measurement of pressure in industrial systems. Its durable construction and wide range of pressure measurement capabilities make it an ideal choice for a variety of applications.
Related Products & Synonyms Of Analog Pressure Gauge

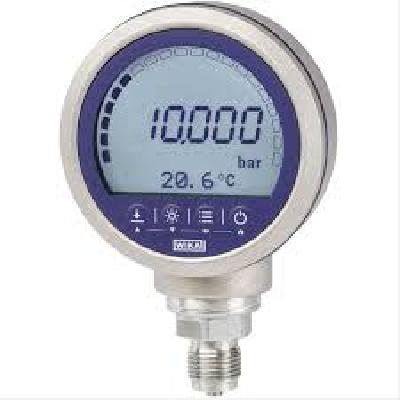

The analog pressure gauge is related to other products such as digital pressure gauges, pressure transmitters, and pressure sensors. It is also known by synonyms such as "analog pressure gage" or "pressure gauge."
