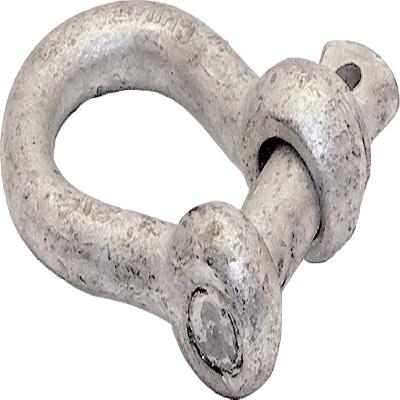

Anchor shackle is a type of fastener used in mooring and towing applications. It consists of a metal loop with a pin or screw attachment, designed to secure loads to a fixed point.
Where To Use Anchor Shackle
Anchor shackles are commonly used in a variety of applications, including:
Mooring systems for ships and boats
Towing applications for heavy loads
Securing cargo on trains or trucks
Industrial lifting and rigging
Key Features Of Anchor Shackle
Robust metal construction for high strength and durability
Ergonomic design for easy handling and operation
Adjustable pin or screw attachment for secure load retention
Durable finish to resist corrosion and wear
How To Use Anchor Shackle
Choose the correct shackle size for your application
Inspect the shackle regularly for signs of wear or damage
Use the shackle with a suitable load pin or screw attachment
Ensure proper alignment and secure fastening of loads
How Anchor Shackle Is Manufactured
Anchor shackles are typically manufactured using a combination of metal forging and machining processes. The raw materials, usually steel or alloy metals, are heated and formed into the desired shape using dies and molds. The shackle is then precision machined to achieve the required tolerances and finish.
Technical Specification Of Anchor Shackle
Working Load Limit:
3,000 kg (6,614 lbs)
Shackle Size:
12 mm (0.472 in) diameter, 50 mm (1.969 in) length
Material:
High-strength steel alloy, ASTM A193-B7
Shackle Type:
Riveted construction, with a single pin attachment
Finish:
Galvanized coating for corrosion resistance
The technical specification of the anchor shackle indicates that it is designed to withstand a working load limit of 3,000 kg (6,614 lbs). The shackle has a diameter of 12 mm (0.472 in) and a length of 50 mm (1.969 in), with a high-strength steel alloy construction meeting ASTM A193-B7 standards. The riveted construction and single pin attachment ensure secure load retention, while the galvanized coating provides corrosion resistance.
Description Of Anchor Shackle
The anchor shackle is a versatile fastening device used in various industrial applications, offering high strength and durability. Its ergonomic design facilitates easy handling and operation, making it an essential tool for securing loads in mooring and towing systems.
Related Products & Synonyms Of Anchor Shackle
The anchor shackle is closely related to other fastening devices, such as:
Eye bolts
Clevis pins
Turnbuckles
The anchor shackle has several synonyms, including:
