An auto transformer is a type of electrical transformer that can increase or decrease the voltage level of an alternating current (AC) supply without a change in frequency. It works on the principle of mutual induction between two coils, and it is widely used for various industrial applications.
Where To Use Auto Transformer
An auto transformer can be used in various industrial applications such as lighting, heating, and power supply systems.
It is also used in laboratories for precise voltage control and measurement purposes.
Auto transformers are used in audio equipment for impedance matching and signal transfer.
Key Features Of Auto Transformer
Auto transformers are compact in size and have a high power density.
They offer precise voltage control and high efficiency ratings.
Auto transformers can handle high currents with minimal loss of energy.
How To Use Auto Transformer
Connect the primary coil of the auto transformer to the power source.
Attach the secondary coil to the load, ensuring that it is properly connected for voltage transfer.
Monitor and adjust the voltage levels as required based on the application specifications.
How Auto Transformer Is Manufactured
The manufacturing process of an auto transformer involves several stages, including design and prototyping, material selection and procurement, coil winding and assembly, testing and quality control.
Technical Specification Of Auto Transformer
Specification
Description
Power Rating (kW)
10-50 kW
Input Voltage (V)
110-440 V
Output Voltage (V)
20-220 V
Frequency (Hz)
50/60 Hz
Connection Type
Screw terminal or bolted
Weight (kg)
5-20 kg
Mounting Type
Wall mount or floor standing
The technical specifications of an auto transformer are crucial for selecting the right device based on specific application requirements. Power rating, input voltage, output voltage, frequency, connection type, weight, and mounting type are all essential parameters to consider when choosing an auto transformer.
Description Of Auto Transformer
An auto transformer is a versatile electrical device that can be used for various applications, including lighting, heating, and power supply systems. It works on the principle of mutual induction between two coils and offers precise voltage control and high efficiency ratings.
Related Products & Synonyms Of Auto Transformer
Some related products to the auto transformer include:
Variable Transformer: A variable transformer is a type of transformer that can adjust its voltage output based on the load requirement.
Single Phase Variac Transformer: A single-phase variac transformer is a type of transformer that provides a wide range of adjustable voltages for various applications.

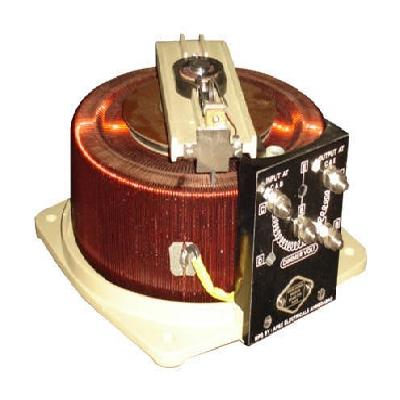

Variable Autotransformer: A variable autotransformer is similar to an auto transformer but offers even higher flexibility in voltage adjustment.
The synonyms for the auto transformer include:
Autotransformer: An autotransformer is another term used to describe an auto transformer.
