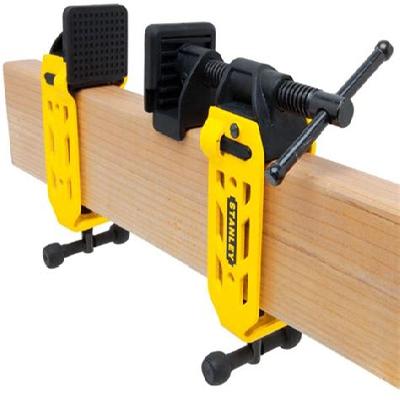

A bar clamp is a versatile tool used in various industries for clamping and holding objects of different shapes and sizes. It is designed to provide a secure grip on bars, pipes, or other cylindrical materials, allowing for precise positioning and control.
Where To Use Bar Clamp
Woodworking and carpentry shops for clamping wood bars or pipes during cutting, gluing, or assembling.
Metal fabrication workshops for holding metal bars or pipes in place during cutting, bending, or shaping.
Cleanroom environments where precision is crucial for handling sensitive materials or equipment.
Key Features Of Bar Clamp
Clamping Capacity: Up to 100mm (3.9 in) diameter or thickness, depending on the model.
Clamp Length: Adjustable from 200mm to 600mm (7.9 in to 23.6 in) for flexibility.
Throat Depth: Typically between 50mm to 150mm (1.97 in to 5.9 in), allowing for deep clamping.
Material: High-quality steel or aluminum for durability and corrosion resistance.
Bar Size: Compatible with various bar sizes, including round, square, or rectangular shapes.
How To Use Bar Clamp
Place the bar clamp around the object to be clamped, ensuring proper alignment.
Tighten the screw or lever to secure the object in place.
Verify the clamping pressure is even and consistent before proceeding with further operations.
How Bar Clamp Is Manufactured
The bar clamp is manufactured using a combination of cutting-edge machinery and human expertise. The process involves precision cutting, shaping, and assembly to ensure the highest quality and accuracy.
Technical Specification Of Bar Clamp
Clamp Length:
200mm to 600mm (7.9 in to 23.6 in)
Throat Depth:
50mm to 150mm (1.97 in to 5.9 in)
Clamping Capacity:
Up to 100mm (3.9 in) diameter or thickness
Material:
High-quality steel or aluminum
Bar Size:
Round, square, or rectangular shapes
The technical specifications of the bar clamp are designed to provide a clear understanding of its capabilities and limitations. The clamp length and throat depth ensure versatility in applications, while the clamping capacity guarantees reliable holding power. The material used is selected for durability and corrosion resistance, ensuring long-lasting performance.
Description Of Bar Clamp
The bar clamp is an essential tool for various industries, offering a reliable solution for clamping and holding objects of different shapes and sizes.
Related Products & Synonyms Of Bar Clamp
The bar clamp is often used in conjunction with other tools and equipment, such as clamping pads, jaw sets, or pipe vices. Its synonyms include:
