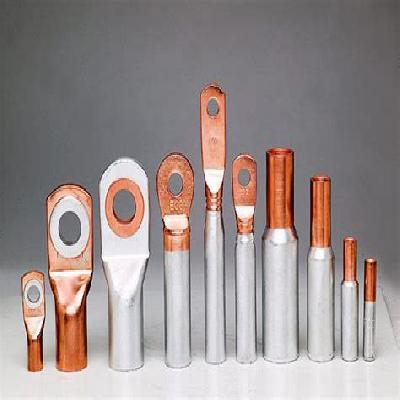

Bi-metallic lugs are a type of electrical connector used to connect cables to devices or other equipment. They consist of two metal parts, one made of aluminum and the other of copper, which are bonded together.
Where To Use Bi-metallic Lugs
Bi-metallic lugs are commonly used in electrical and electronics applications, such as in power distribution systems, circuit boards, and connectors.
Key Features Of Bi-metallic Lugs
High electrical conductivity
Good corrosion resistance
Durable and long-lasting
Easy to install and remove
How To Use Bi-metallic Lugs
Clean the lug terminals before use
Connect the cables to the lug terminals securely
Tighten the lugs firmly in place
Verify the connection is secure and functioning properly
How Bi-metallic Lugs Is Manufactured
Bi-metallic lugs are manufactured through a process known as electroplating, where the aluminum and copper parts are bonded together using an electric current.
Technical Specification Of Bi-metallic Lugs
Cable Size:
2.5mm² to 35mm²
Barrel Type:
Screw type, Lug type
Hole Diameter:
2mm to 10mm
Temperature Rating:
-50°C to +120°C
Plating:
Nickel, Gold, Tin
The technical specification of bi-metallic lugs includes the cable size range, barrel type, hole diameter, temperature rating, and plating options. These specifications ensure that the lugs can withstand various environmental conditions and provide reliable electrical connections.
Description Of Bi-metallic Lugs
Bi-metallic lugs are designed to provide a secure and reliable connection between cables and devices. They offer high electrical conductivity, good corrosion resistance, and durable construction.
Related Products & Synonyms Of Bi-metallic Lugs
Bi-metallic lugs are related to other electrical connectors and terminals, such as ring lugs, fork lugs, and battery terminals. Synonyms for bi-metallic lugs include Aluminium-Copper Bimetal Terminals, Aluminum-Copper Bi-Metal Terminals.
