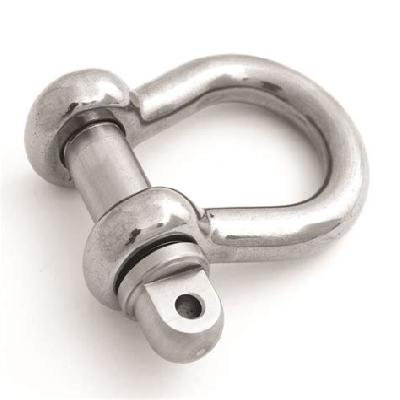

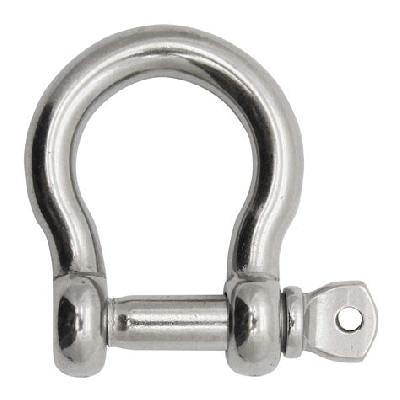

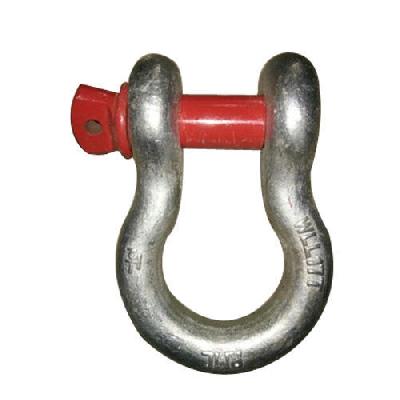

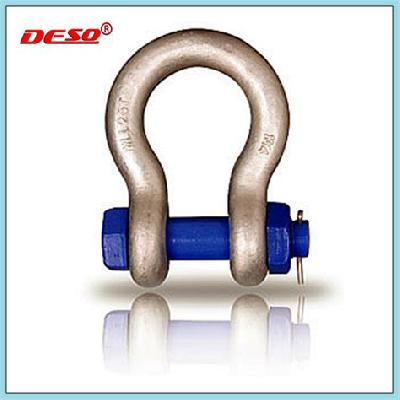

A bow shackle is a type of fastening device used in rigging and sailing applications. It consists of a metal ring with a bow-shaped end, designed to secure ropes or chains. The primary function of a bow shackle is to provide a secure connection between two objects while allowing for flexibility and movement.
Where To Use Bow Shackle
A bow shackle can be used in various applications, including sailing, rigging, and marine equipment.
It is also used in industrial settings for securing heavy loads or equipment.
Key Features Of Bow Shackle
Robust metal construction for durability and resistance to corrosion.
Bow-shaped end provides a secure connection between two objects.
Available in various sizes and materials to suit different applications.
How To Use Bow Shackle
Pass the rope or chain through the bow shackle's ring.
Adjust the shackle to secure the connection.
Ensure the shackle is properly tightened to prevent accidental release.
How Bow Shackle Is Manufactured
The manufacturing process of a bow shackle involves several stages, including metal casting, machining, and assembly. The metal ring is typically made from high-strength steel or aluminum alloy, while the bow-shaped end is machined to precise specifications.
Technical Specification Of Bow Shackle
Size:
16mm to 50mm
Material:
High-strength steel or aluminum alloy
Pin Type:
Round pin or bow-shaped end
Bow Width:
10mm to 30mm
The technical specifications of a bow shackle are critical in ensuring its performance and safety. The size, material, pin type, and bow width all contribute to the shackle's strength, durability, and versatility. By selecting the correct specifications for a particular application, users can ensure optimal performance and minimize the risk of failure or damage.
Description Of Bow Shackle
A bow shackle is a versatile and essential component in various industries, including sailing, rigging, and marine equipment. Its robust construction and secure connection make it an ideal choice for heavy-duty applications.
