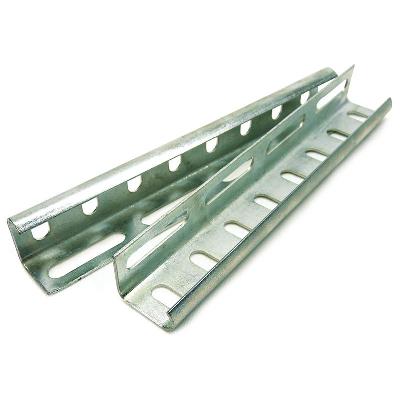

A coupler plate is a mechanical component used to connect two or more sections of cable tray together, ensuring a secure and stable installation.
Where To Use Coupler Plate
Coupler plates are used in various applications, including cable tray systems for data centers, commercial buildings, and industrial facilities.
Key Features Of Coupler Plate
Designed for easy installation and removal
Ensures secure connection between cable tray sections
Available in various sizes to fit different cable tray systems
Made from durable materials to withstand harsh environments
How To Use Coupler Plate
Identify the correct size and type of coupler plate for your cable tray system
Attach the coupler plate to the end of each cable tray section using screws or other fasteners
Ensure proper alignment and secure connection between sections
How Coupler Plate Is Manufactured
Coupler plates are typically manufactured using high-strength steel or aluminum alloys, with precise machining and finishing processes to ensure durability and quality.
Technical Specification Of Coupler Plate
Plate Size:
500mm x 300mm
Plate Thickness:
3mm
Material:
High-Strength Steel
Surface Finish:
Powder Coated
Load Capacity:
Up to 500kg
The technical specification of the coupler plate is designed to ensure a secure and stable connection between cable tray sections, with a load capacity of up to 500kg. The plate size is 500mm x 300mm, with a thickness of 3mm, made from high-strength steel material with a powder coated surface finish.
Description Of Coupler Plate
The coupler plate is a vital component in cable tray systems, providing a secure connection between sections and ensuring the stability of the installation.
Related Products & Synonyms Of Coupler Plate
Some related products to the coupler plate include cable tray connectors, fittings, and adapters. Synonyms for the coupler plate include cable tray coupler plates.
