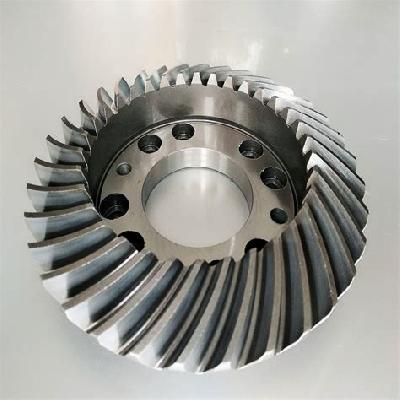

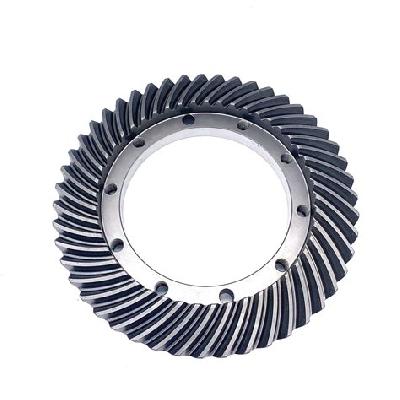

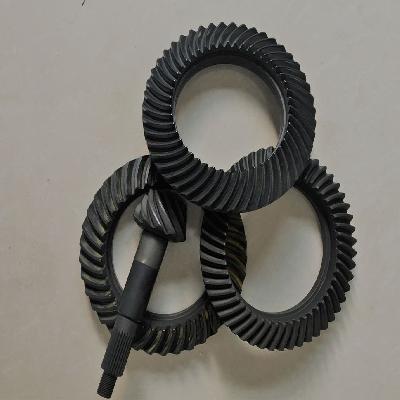

A crown wheel is a type of gear used in various applications, including automotive and industrial settings. It is typically composed of multiple teeth arranged in a circular pattern, designed to transmit rotational motion from one shaft to another.
Where To Use Crown Wheel
Automotive applications, such as in manual transmission gearboxes and differential units.
Industrial settings, including conveyor belts, machinery, and power transmission systems.
Other applications where precise rotational motion is required.
Key Features Of Crown Wheel
High precision and accuracy in transmitting rotational motion.
Durable construction to withstand heavy loads and stresses.
Adjustable or fixed configurations, depending on specific requirements.
How To Use Crown Wheel
Ensure proper installation and alignment with the driven shaft.
Apply lubrication to reduce friction and prevent wear on moving parts.
Maintain regular inspections to detect any signs of wear or damage.
How Crown Wheel Is Manufactured
The manufacturing process involves several stages, including cutting and grinding the gear teeth, heat treatment for increased hardness and durability, and assembly with other components such as shafts and bearings.
Technical Specification Of Crown Wheel
Material:
Steel
Diameter:
100 mm
Surface Finish:
Ground
Number of Teeth:
50 teeth
The technical specifications of a crown wheel are critical in determining its performance and suitability for various applications. The material used, such as steel, provides high strength and durability. The diameter, typically ranging from 50 to 200 mm, depends on the specific application requirements. A surface finish of ground or machined ensures smooth operation and reduced wear on moving parts. Finally, the number of teeth, which can range from 20 to 100, affects the gear ratio and overall system efficiency.
Description Of Crown Wheel
A crown wheel is a precision-engineered component designed to provide efficient rotational motion in various applications. Its robust construction and precise manufacturing ensure reliable performance even under heavy loads.

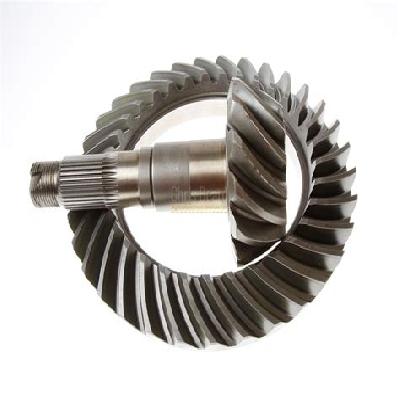

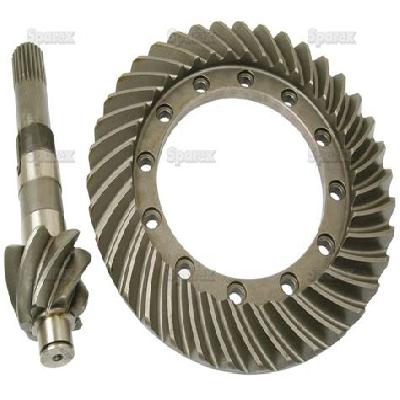

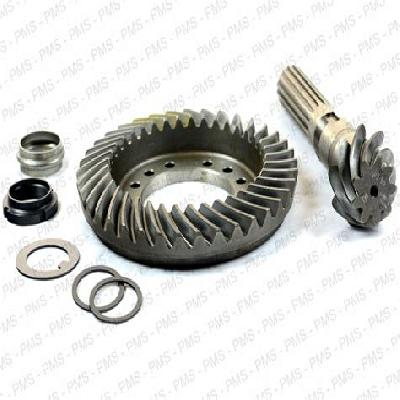

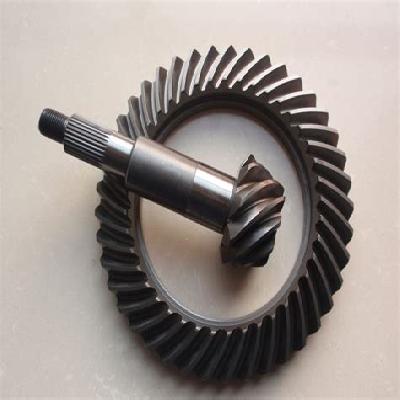

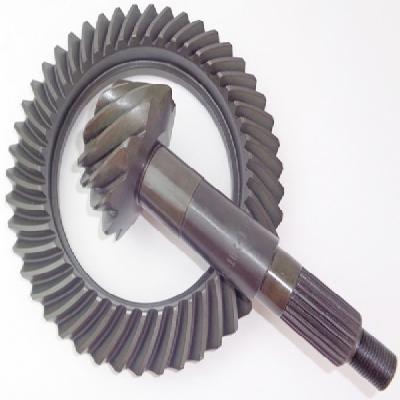

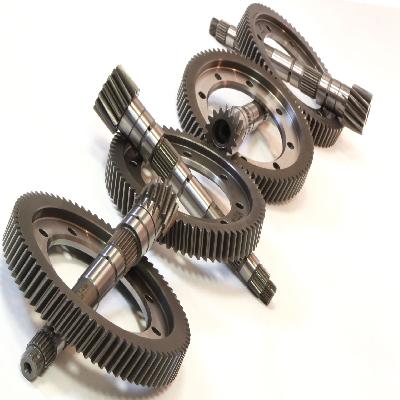

Related Products & Synonyms Of Crown Wheel
Crown wheels are often used in conjunction with other gear components, such as pinions and shafts. Some related products include:
