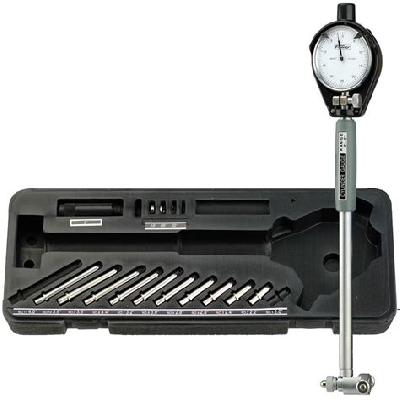

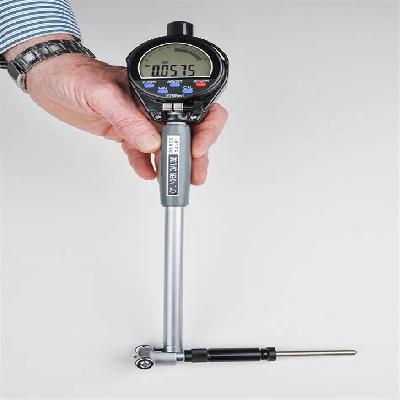

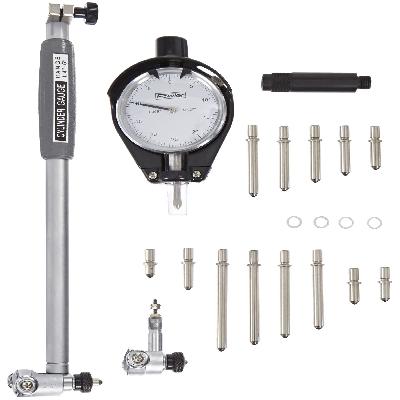

A dial bore gauge is a precision measuring instrument used to measure the inside diameter of cylindrical objects such as pipes, tubes, and bores. It consists of a dial face with markings for measurement readings, a pointer that indicates the measured value, and a vernier or digital display for precise readings.
Where To Use Dial Bore Gauge
A dial bore gauge is used in various industries such as aerospace, automotive, medical, and manufacturing to measure the internal diameter of components. It is essential for ensuring accuracy and quality control in production processes.
Key Features Of Dial Bore Gauge
High accuracy and precision measurements
Durable and long-lasting construction
Easy to use and handle
Compact size for convenient storage
Rugged design for withstanding harsh environments
How To Use Dial Bore Gauge
Place the gauge on the object to be measured
Rotate the dial until the pointer aligns with the vernier or digital display
Read the measurement value from the dial face
Verify the accuracy of the reading using a calibration certificate
How Dial Bore Gauge Is Manufactured
The manufacturing process of a dial bore gauge involves various stages such as precision machining, calibration, and assembly. The components are sourced from reputable suppliers to ensure high-quality materials. Quality control measures are implemented throughout the production process to guarantee accuracy and reliability.
Technical Specification Of Dial Bore Gauge
Type of Bore Gauge:
Internal Micrometer
Measurement Range:
0-100 mm
Resolution:
0.01 mm
Accuracy:
+/- 0.02 mm
Body Material:
Stainless Steel
Display Type:
Digital LCD Display
The technical specifications of the dial bore gauge are designed to provide high accuracy and precision measurements. The internal micrometer type ensures accurate readings, while the measurement range of 0-100 mm covers a wide range of applications. The resolution of 0.01 mm allows for precise measurements, and the accuracy of +/- 0.02 mm ensures reliable results. The body material is made of stainless steel for durability, and the digital LCD display provides clear and easy-to-read measurements.
Description Of Dial Bore Gauge
The dial bore gauge is a precision measuring instrument used to measure the internal diameter of cylindrical objects. It consists of a dial face with markings for measurement readings, a pointer that indicates the measured value, and a vernier or digital display for precise readings.
Related Products & Synonyms Of Dial Bore Gauge
The dial bore gauge is related to other measuring instruments such as micrometers, calipers, and height gauges. It is also known by synonyms such as bore gauge, bore gage, and dial bore gage.
