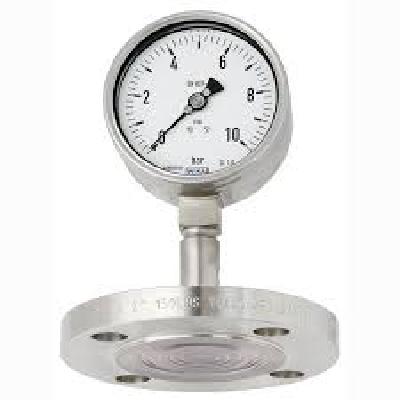

A diaphragm gauge is a type of pressure measuring instrument that uses a flexible diaphragm to detect changes in pressure. It is commonly used in industrial settings for measuring pressure levels, flow rates, and other parameters.
Where To Use Diaphragm Gauge
Diaphragm gauges are widely used in various industries such as oil and gas, chemical processing, power generation, and pharmaceuticals. They can be used for measuring pressure levels in pipes, vessels, and other equipment.
Key Features Of Diaphragm Gauge
High accuracy and precision
Wide range of pressure measurement capabilities
Compact and lightweight design
Durable and resistant to corrosion
Easy to install and maintain
How To Use Diaphragm Gauge
Connect the diaphragm gauge to the process piping or equipment
Calibrate the instrument according to the manufacturer's instructions
Take regular readings of pressure levels and other parameters as required
Maintain the instrument regularly to ensure accuracy and reliability
How Diaphragm Gauge Is Manufactured
The manufacturing process of diaphragm gauges involves several stages, including design and development, material selection, machining and assembly, and final testing and calibration.
Technical Specification Of Diaphragm Gauge
Pressure Range:
-10 to 100 bar
Accuracy:
±1% of full scale
Dial Size:
120 mm diameter
Connection Type:
BSP threads
Diaphragm Material:
Stainless steel
Temperature Range:
-20 to 150°C
The technical specification of diaphragm gauges is critical in ensuring accurate and reliable measurement results. The specifications include pressure range, accuracy, dial size, connection type, diaphragm material, and temperature range.
Description Of Diaphragm Gauge
A diaphragm gauge is a robust and reliable instrument designed for measuring pressure levels in industrial processes. It features a flexible diaphragm that detects changes in pressure, providing accurate and precise measurement results.
Related Products & Synonyms Of Diaphragm Gauge
Some related products to diaphragm gauges include pressure transmitters, pressure sensors, and differential pressure gauges. The synonyms for diaphragm gauge include "diaphragm gage".
