A digital LCR meter is a type of electronic measurement instrument used to measure the inductance, capacitance, and resistance of electrical components. It is designed to provide accurate and reliable measurements, making it an essential tool for electronics engineers, technicians, and researchers.
Where To Use Digital Lcr Meter
A digital LCR meter is used in a variety of applications, including electronics manufacturing, research and development, quality control, and maintenance. It can be used to measure the characteristics of electrical components such as coils, capacitors, and resistors.
Key Features Of Digital Lcr Meter
High accuracy and precision measurements
Automatic range selection for easy operation
Dual display for displaying two parameters simultaneously
Backlit LCD display for clear visibility in low light conditions
Rugged and compact design for ease of use
How To Use Digital Lcr Meter
Connect the leads of the meter to the component being measured
Select the measurement range using the keypad or buttons
Press the measure button to take the reading
Note down the measurements and record them for future reference
How Digital Lcr Meter Is Manufactured
The manufacturing process of a digital LCR meter involves several stages, including design, prototyping, testing, and production. The components used in the meter are sourced from reputable suppliers and undergo rigorous quality control checks before assembly.
Technical Specification Of Digital Lcr Meter
Measurement Range:
10 ?H to 100 H, 10 nF to 1000 ?F, 1 ? to 10 M?
Accuracy:
±0.5% of reading + 1 digit
Frequency Response:
20 Hz to 100 kHz
Display Type:
Dual display, Backlit LCD
Power Supply:
3 x 1.5 V (AAA) batteries, External power adapter (optional)
The technical specifications of a digital LCR meter are critical in determining its accuracy and reliability. The measurement range, accuracy, frequency response, display type, and power supply are all important factors to consider when selecting a digital LCR meter for use in electronics manufacturing or research applications.

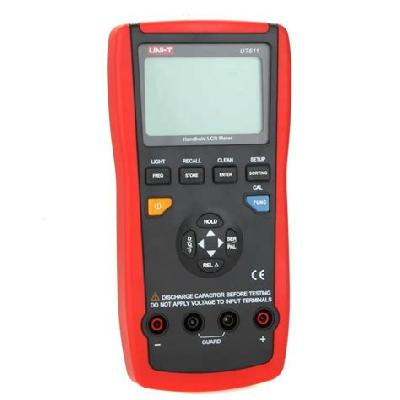

Description Of Digital Lcr Meter
A digital LCR meter is a compact and rugged measurement instrument designed to measure the inductance, capacitance, and resistance of electrical components. It features a dual display for displaying two parameters simultaneously and has automatic range selection for easy operation.
Related Products & Synonyms Of Digital Lcr Meter
Some related products to a digital LCR meter include multimeters, oscilloscopes, and signal generators. Synonyms for a digital LCR meter include portable LCR meters and digital handheld LCR meters.
