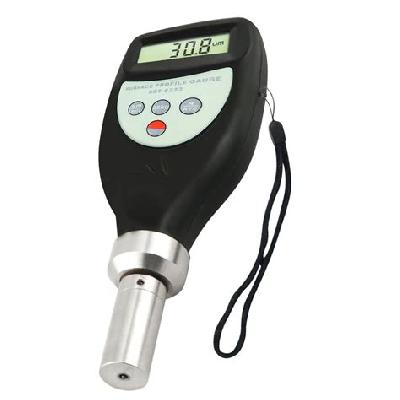

A digital surface profile gauge is a precision instrument used to measure the surface roughness of materials, particularly in industrial applications. It provides accurate and reliable readings, making it an essential tool for quality control and assurance.
Where To Use Digital Surface Profile Gauge
Digital surface profile gauges are used in various industries, including manufacturing, quality control, and research and development. They are particularly useful for measuring the surface roughness of metals, plastics, and other materials in environments where high precision is required.
Key Features Of Digital Surface Profile Gauge
High accuracy and precision readings
Durable and rugged design for industrial use
Easy to use and operate
Compact and lightweight design
Long battery life for extended use
How To Use Digital Surface Profile Gauge
Place the gauge on the surface to be measured, ensuring it is securely positioned
Select the desired measurement range and mode of operation
Zero the gauge by running a calibration tool over the surface
Measure the surface roughness by moving the gauge along the surface in sections or continuously
Record the readings accurately and repeat as necessary
How Digital Surface Profile Gauge Is Manufactured
The manufacturing process of digital surface profile gauges involves multiple stages, including design and prototyping, component sourcing, assembly, testing, and quality control. The components used are sourced from reputable suppliers to ensure high precision and reliability.
Technical Specification Of Digital Surface Profile Gauge
Measurement Parameters:
Ra, Rz, Rq, and Rt
Cutoff Length (Lc):
0.8 mm to 25.4 mm
Measurement Range:
0.1 µm to 1000 µm
Battery Type:
2 x AAA alkaline batteries
Display Type:
LCD with backlight and high-resolution display
Connectivity:
USB for data transfer and charging
The technical specifications of the digital surface profile gauge are outlined above. The measurement parameters include Ra, Rz, Rq, and Rt, which provide a comprehensive understanding of the surface roughness. The cutoff length range is from 0.8 mm to 25.4 mm, allowing for flexibility in measuring various surfaces. The measurement range is from 0.1 µm to 1000 µm, ensuring accurate readings across a wide range of surface roughness values. The battery type is 2 x AAA alkaline batteries, providing long battery life and ease of replacement. The display type is an LCD with backlight and high-resolution display, allowing for clear and precise reading of measurements.
Description Of Digital Surface Profile Gauge
The digital surface profile gauge is a precision instrument designed for measuring the surface roughness of materials in industrial applications. Its compact and lightweight design makes it easy to handle and transport, while its durable construction ensures long-lasting performance even in harsh environments.
Related Products & Synonyms Of Digital Surface Profile Gauge
The digital surface profile gauge is related to other precision instruments used for measuring surface roughness, including the Elcometer surface profile gauge and the digital surface profile gage. The synonyms of the digital surface profile gauge include Elcometer Surface Profile Gauge, Digital Surface Profile Gage, Elcometer Surface Profile Gage, and Surface Profile Gauge.
