A diode is a type of semiconductor device that allows the flow of current in one direction while blocking it in the other. It is a fundamental component in electronic circuits and is used in a wide range of applications, including rectification, amplification, and switching.
Where To Use Diodes
Diodes are used in a variety of applications, including:
Rectification of AC power
Amplication and switching circuits
Radio frequency (RF) amplifiers
Light emitting diodes (LEDs)
Solar panels
Key Features Of Diodes
Low forward voltage drop
High switching speed
High current handling capacity
Low reverse leakage current
High reliability and long lifespan
How To Use Diodes
Select the correct type of diode for the application
Ensure proper mounting and wiring
Follow safe handling procedures
Monitor temperature and current levels
How Diodes Is Manufactured
Diodes are manufactured using a process known as the planar process, which involves:
Crystal growth and cutting
Diffusion and ion implantation
Metalization and packaging
Technical Specification Of Diodes
Voltage (V)
50-2000V
Current (A)
1-100A
Reverse Current (A)
0.1-10mA
Peak Reverse Voltage (V)
100-5000V
The technical specifications of diodes are critical in determining their suitability for a particular application. The voltage, current, and reverse current ratings must be matched to the requirements of the circuit, while the peak reverse voltage rating must be sufficient to withstand transient voltages. By carefully selecting the appropriate type and specification of diode, designers can ensure reliable and efficient operation of electronic circuits.
Description Of Diodes
Diodes are a fundamental component in electronic circuits, allowing the flow of current in one direction while blocking it in the other. They are used in a wide range of applications, including rectification, amplification, and switching.
Related Products & Synonyms Of Diodes
The following are related products and synonyms of diodes:

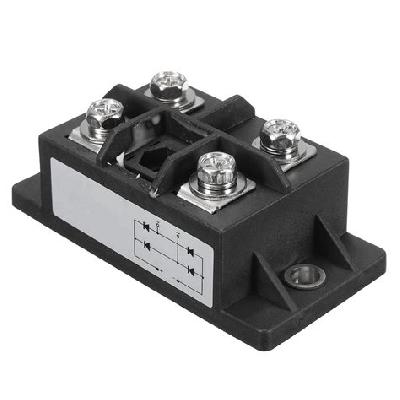

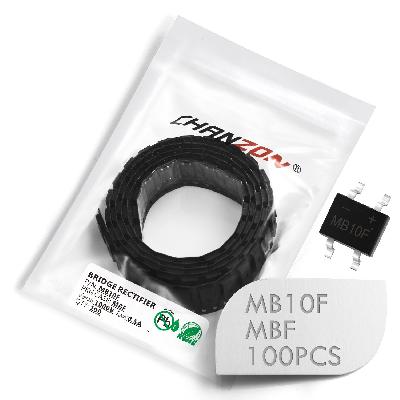

Rectifier Diodes: These diodes are used for rectification of AC power.

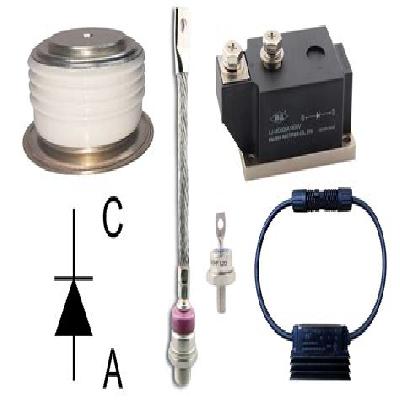

Power Diode: This type of diode is used in high-power applications, such as motor control and switching circuits.

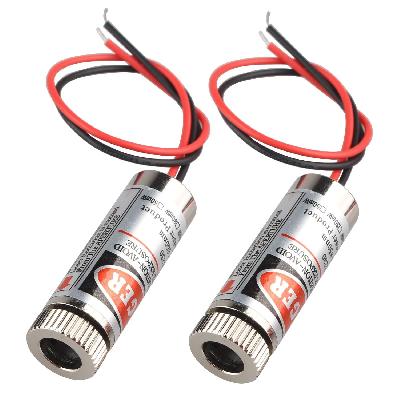

Laser Diode: A semiconductor laser that emits coherent light at a specific wavelength.
Diode Module: A module containing multiple diodes for use in power supplies and other applications.
The following are synonyms of diodes:
Schottky Diode: A type of diode that uses a metal-semiconductor junction to reduce forward voltage drop.
Zener Diodes: These diodes are used for voltage regulation and protection circuits.

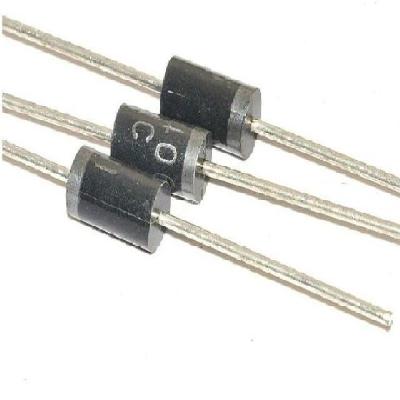

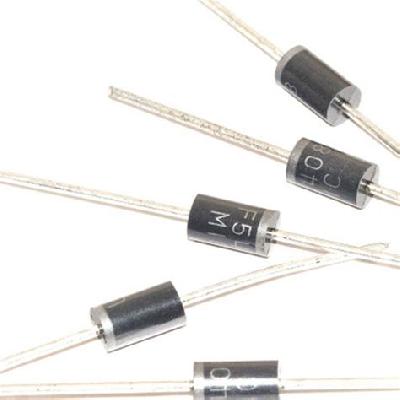

Fast Recovery Diode: This type of diode is designed for high-frequency applications, such as power supplies and switching circuits.
