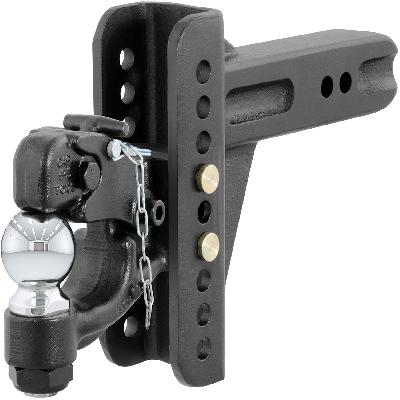

A draw bar is a crucial component in agricultural equipment, particularly in tractors and farming machinery. It serves as a connecting link between the tractor and the attached implements, such as plows, cultivators, or mowers. The primary function of a draw bar is to transmit power from the tractor's three-point hitch to the implement, enabling efficient work operations.
Where To Use Draw Bar
Draw bars are commonly used in various agricultural settings, including farming, ranching, and orchards. They can be attached to tractors of different sizes and types, depending on the specific requirements of the operation.
Key Features Of Draw Bar
Sturdy construction for withstanding heavy loads and stresses
Easy attachment and detachment from the tractor's three-point hitch
Adjustable length to accommodate different implement sizes
Durable materials for extended service life
Efficient power transmission for smooth operation
How To Use Draw Bar
Ensure proper attachment of the draw bar to the tractor's three-point hitch
Adjust the length of the draw bar according to the implement size and requirements
Carefully attach the implement to the draw bar, ensuring secure connection
Start the tractor and slowly engage the power transmission system
Maintain steady speed and control during operation
How Draw Bar Is Manufactured
The manufacturing process for draw bars involves several stages, including material selection, cutting and shaping, welding or assembly, and quality control checks. The materials used are typically steel or aluminum alloys, chosen for their strength, durability, and resistance to corrosion.
Technical Specification Of Draw Bar
Length:
2.5 meters
Width:
0.3 meters
Height:
1 meter
Weight:
50 kg
Material Thickness:
5 mm
Hole Diameter:
10 mm
Load Capacity:
500 kg
Bolt Hole Spacing:
150 mm
Surface Finish:
Mild steel, painted with red oxide
Hitch Types:
Quick Hitch, Cat.1
The specifications provided above outline the key parameters of a standard draw bar used in agricultural equipment. The material selection and manufacturing process ensure durability, strength, and ease of maintenance.
Description Of Draw Bar
The draw bar is a versatile and essential component of agricultural machinery, designed to facilitate efficient power transmission between the tractor and attached implements. Its sturdy construction, adjustable length, and durable materials make it an indispensable tool for farming operations.
Related Products & Synonyms Of Draw Bar
Some related products to the draw bar include plows, cultivators, and mowers, which are commonly used in agricultural operations. The synonyms for the draw bar can be described as follows:
