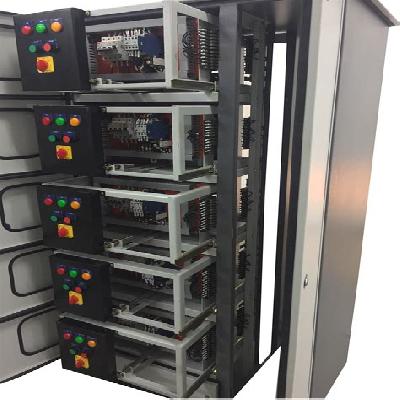

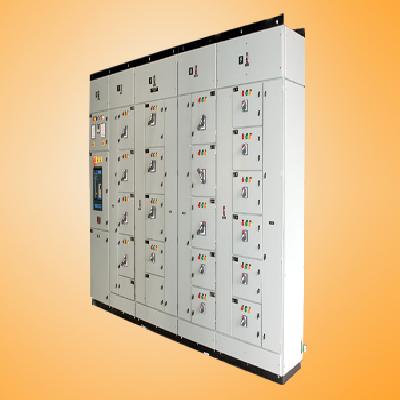

A drawout panel is an electrical control device used in industrial settings to manage and regulate electrical power distribution.
Where To Use Drawout Panel
Industrial plants and factories
Power generation stations
Data centers and server rooms
High-rise buildings and commercial complexes
Key Features Of Drawout Panel
High voltage and current rating capabilities
Multiple drawout modules for customizable power distribution
Durable construction with high-quality materials
Compact design for easy installation and maintenance
How To Use Drawout Panel
Mount the panel in a suitable location, following safety guidelines
Connect the drawout modules to the electrical power source
Configure and program the panel according to specific requirements
Maintain the panel regularly to ensure optimal performance
How Drawout Panel Is Manufactured
The drawout panel is manufactured using high-quality materials and advanced production techniques to ensure durability and reliability.
Technical Specification Of Drawout Panel
Voltage Rating:
500V - 1000V
Current Rating:
10A - 50A
Number of Phases:
1-3 phases
Frequency:
50Hz - 60Hz
Number of Drawout Modules:
1-5 modules
Material:
Stainless steel, aluminum
Weight:
10kg - 50kg
Dimensions:
400mm x 200mm x 100mm
The technical specification of the drawout panel is designed to meet various industrial requirements, with adjustable settings for voltage, current, and frequency. The high-quality materials used ensure durability and reliability, while the compact design facilitates easy installation and maintenance.
Description Of Drawout Panel
The drawout panel is a highly customizable electrical control device designed for industrial use, offering high voltage and current rating capabilities, multiple drawout modules, and durable construction.
Related Products & Synonyms Of Drawout Panel
The drawout panel is related to other electrical control devices and panels, such as the circuit breaker panel and the busbar trunking system. Synonyms for the drawout panel include the "drawout electrical panel" and the "electrical distribution panel."
