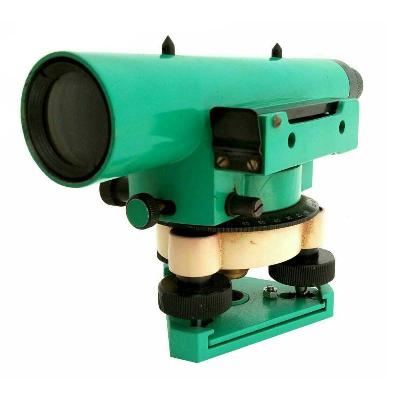

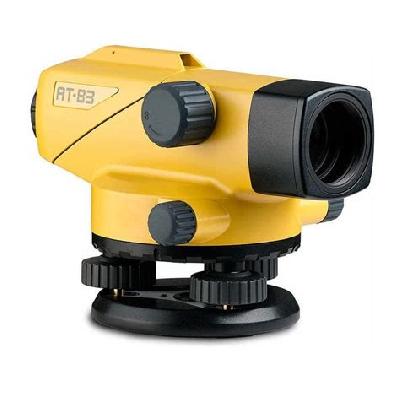

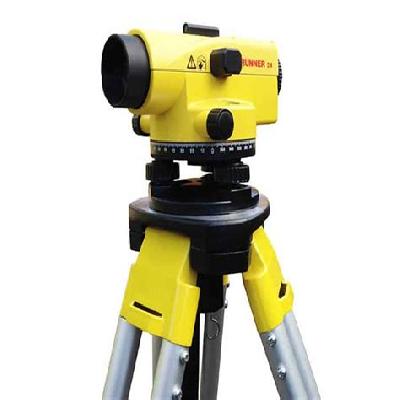

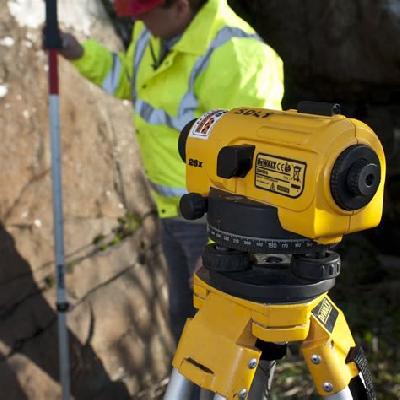

A dumpy level is a precision engineering instrument used in surveying and levelling applications. It measures the difference in height between two points, typically to determine the exact position of buildings, roads, or other structures.
Where To Use Dumpy Level
Dumpy levels are commonly used in various industries, including construction, civil engineering, and geodetic surveys. They can be used for measuring the distance between two points, determining the level of a surface, or checking the alignment of structures.
Key Features Of Dumpy Level
High accuracy and precision
Durable and rugged design
Easy to use and maintain
Accurate measurements over long distances
Can be used in various environmental conditions
How To Use Dumpy Level
Place the dumpy level on a stable surface
Adjust the instrument to the desired height and angle
Read the measurement from the vernier scale or digital display
Record the measurements accurately for further calculations
Repeat the process as needed to achieve precise results
How Dumpy Level Is Manufactured
The manufacturing process of a dumpy level involves several stages, including design, material selection, component assembly, and testing.
Technical Specification Of Dumpy Level
Magnification:
5x to 10x
Objective Lens Diameter:
40mm to 60mm
Accuracy:
±1 mm to ±5 mm
Weight:
2kg to 5kg
Material:
Aluminum, Stainless Steel, or Brass
The technical specifications of a dumpy level are crucial for its performance and accuracy in measuring distances and levels. The magnification range, objective lens diameter, accuracy, weight, and material used all contribute to the instrument's overall effectiveness.
Description Of Dumpy Level
A dumpy level is a precision instrument used for measuring distances and levels with high accuracy.
