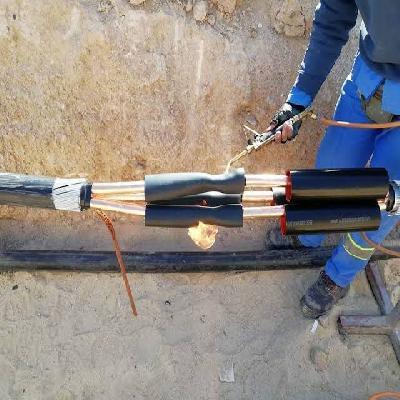

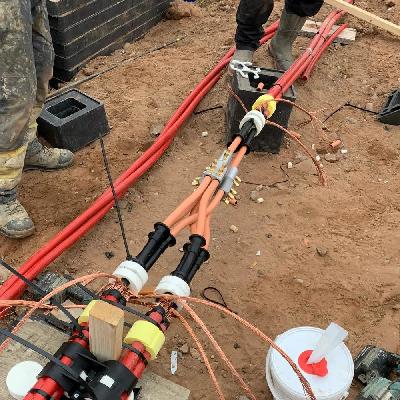

Electrical cable jointing refers to the process of connecting two or more electrical cables together using a joint. This is typically done to extend the length of a cable, repair a damaged section, or change the type of connector on an existing cable.
Where To Use Electrical Cable Jointing
Electrical cable jointing can be used in various applications, including industrial settings, construction sites, and residential areas. It is commonly used for connecting cables in electrical panels, distribution boards, and other equipment.
Key Features Of Electrical Cable Jointing
Cable Type: The type of cable being jointed, such as copper or aluminum.
Joint Type: The type of joint used to connect the cables, such as a solder joint or a crimp joint.
Number of Core: The number of cores in each cable being connected.
Duration: The expected lifespan of the jointed cable.
Cable Size: The diameter of the cables being connected.
How To Use Electrical Cable Jointing
Choose the correct type of cable and joint for the application.
Clean and prepare the ends of the cables to be connected.
Apply the joint material (e.g. solder or crimping tool) according to the manufacturer's instructions.
Connect the cables using the chosen method.
How Electrical Cable Jointing Is Manufactured
The manufacturing process for electrical cable jointing typically involves several stages, including material selection, cutting and shaping the cables, applying the joint material, and testing the finished joints.
Technical Specification Of Electrical Cable Jointing
Cable Type:
Copper
Joint Type:
Solder Joint
Number of Core:
3
Duration:
10 years
Cable Size:
2.5mm
The technical specifications listed above are a summary of the key characteristics and features of electrical cable jointing. The specific requirements for each application may vary depending on factors such as environmental conditions, load capacity, and safety standards.
Description Of Electrical Cable Jointing
Electrical cable jointing is a critical component in electrical systems, providing a secure and reliable connection between cables. It is essential to select the correct type of cable and joint for each application, taking into account factors such as temperature range, vibration resistance, and electromagnetic compatibility.
Related Products & Synonyms Of Electrical Cable Jointing
Some related products to electrical cable jointing include:
Electrical connectors
Cable glands
Terminal blocks
