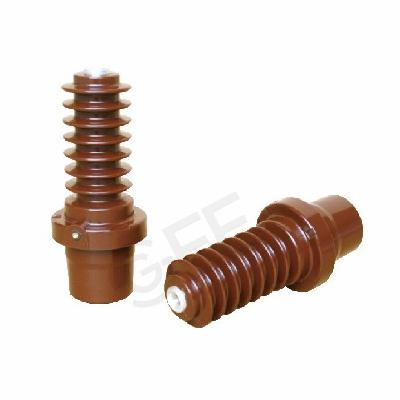

An epoxy bushing is a type of electrical insulator used in various industrial applications to provide protection and isolation between different components.
Where To Use Epoxy Bushing
Epoxy bushings can be used in a wide range of applications, including electrical panels, switchgear, and circuit breakers. They are particularly useful in areas where high-voltage or high-current components require isolation.
Key Features Of Epoxy Bushing
Epoxy resin provides high electrical insulation and mechanical strength.
Compact design for easy installation in tight spaces.
Resistance to thermal, chemical, and environmental stressors.
Wide operating temperature range (-50°C to +150°C).
How To Use Epoxy Bushing
Select the correct epoxy bushing for your specific application based on voltage, current, and environmental conditions.
Clean and prepare the mounting surface according to manufacturer's instructions.
Mount the epoxy bushing securely using screws or clips provided.
Ensure proper connections and verify electrical isolation before operation.
How Epoxy Bushing Is Manufactured
Epoxy bushings are manufactured through a process of mixing and casting epoxy resin with other materials to achieve the desired properties. The mixture is then formed into the required shape using molds or machines.
Technical Specification Of Epoxy Bushing
Voltage Rating:
250V AC/DC
Material:
Epoxy Resin
Creepage Distance:
5mm
Flange Type:
M20
The technical specification of epoxy bushings is crucial for ensuring safe and reliable operation in various industrial applications. The specifications listed above provide a general overview of the product's capabilities and limitations.
Description Of Epoxy Bushing
Epoxy bushings are designed to provide electrical insulation and mechanical support in various industrial applications. They offer high temperature resistance, chemical stability, and compact design for easy installation.
Related Products & Synonyms Of Epoxy Bushing
Some related products to epoxy bushings include ceramic insulators, polymer bushings, and composite materials. Synonyms for epoxy bushing include electrical insulator, bushing assembly, and high-voltage insulation component.
