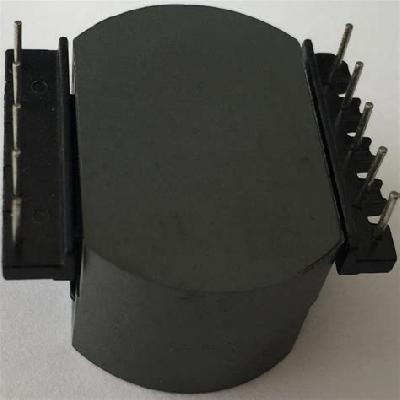

A ferrite transformer is a type of electrical transformer that utilizes ferrite materials as the core for the transformer.
Where To Use Ferrite Transformer
Ferrite transformers are widely used in various applications, including power supplies, audio equipment, and medical devices, where a high level of isolation and low power loss is required.
Key Features Of Ferrite Transformer
High level of isolation
Low power loss
Compact design
Long lifespan
High efficiency
How To Use Ferrite Transformer
Connect the input and output terminals correctly
Select the appropriate operating voltage and frequency
Maintain a stable power supply to ensure optimal performance
Carefully handle the transformer to avoid damage
How Ferrite Transformer Is Manufactured
The manufacturing process of ferrite transformers involves several stages, including material selection, core production, winding, and assembly.
Technical Specification Of Ferrite Transformer
Input Voltage:
200-240V
Output Voltage:
24V
Power Rating:
100W
Frequency:
50/60Hz
Phase:
Single-phase
Cooling Type:
Natural convection
Weight:
1.5kg
Isolation Voltage:
3000V AC
The technical specification of a ferrite transformer is crucial in determining its suitability for a particular application. The input voltage, output voltage, power rating, frequency, phase, cooling type, weight, and isolation voltage are all important factors to consider. In this case, the transformer has an input voltage range of 200-240V, an output voltage of 24V, a power rating of 100W, a frequency of 50/60Hz, a single-phase design, natural convection cooling, a weight of 1.5kg, and an isolation voltage of 3000V AC.
Description Of Ferrite Transformer
A ferrite transformer is a type of electrical transformer that utilizes ferrite materials as the core for the transformer. It has a compact design and is suitable for applications where high isolation and low power loss are required.
Related Products & Synonyms Of Ferrite Transformer
Some related products of ferrite transformers include:
