The FFT analyzer is a type of laboratory instrument used for analyzing and measuring signals in various fields, including physics, engineering, and electronics. It works by converting time-domain signals into frequency-domain signals, allowing users to analyze the frequency content of their measurements.
Where To Use Fft Analyzer
The FFT analyzer is commonly used in a variety of applications, including:
Research and development labs
Quality control departments
Testing and inspection facilities
Academic institutions
Key Features Of Fft Analyzer
High-speed processing capabilities
Advanced signal processing algorithms
Real-time display and analysis
Multiple communication interfaces (e.g., USB, Ethernet)
Durable and compact design
How To Use Fft Analyzer
Connect the FFT analyzer to a signal source (e.g., oscilloscope, function generator)
Configure the instrument using the built-in software or GUI
Select the desired measurement parameters (e.g., frequency range, sampling rate)
Start the measurement and analyze the results in real-time
How Fft Analyzer Is Manufactured
The FFT analyzer is manufactured using a combination of advanced technologies and high-quality components, including:
High-speed digital signal processing chips
Durable and corrosion-resistant materials (e.g., aluminum, stainless steel)
Advanced software and firmware development tools
Technical Specification Of Fft Analyzer
Parameter
Specification
Frequency Range
10 Hz to 100 MHz
Sampling Rate
1 kHz to 100 MSPS
Number of Channels
Single-channel or dual-channel operation
Communication Interface
USB, Ethernet, GPIB
Display Type
Color touchscreen display with graphical interface
The technical specifications of the FFT analyzer are designed to meet the needs of a wide range of applications, from research and development to quality control and testing. The instrument's advanced signal processing capabilities, high-speed processing, and multiple communication interfaces make it an ideal choice for many industries.
Description Of Fft Analyzer

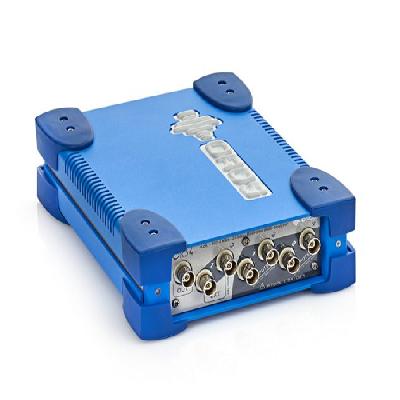

The FFT analyzer is a compact and durable instrument designed for use in laboratory and industrial environments. It features a color touchscreen display with a graphical interface, allowing users to easily configure the instrument and analyze measurement results.
Related Products & Synonyms Of Fft Analyzer
The FFT analyzer is related to other laboratory instruments, including:
