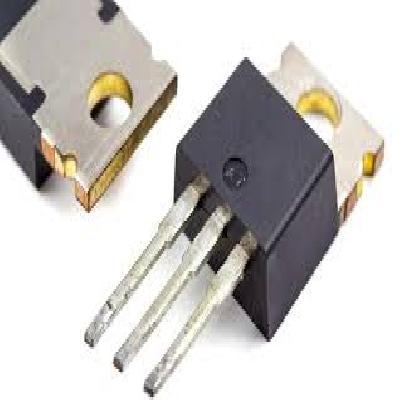

Field effect transistors (FETs) are a type of transistor that uses an electric field to control the flow of current between two terminals, rather than a mechanical action as in bipolar junction transistors (BJTs). FETs have several advantages over BJTs, including higher input impedance, faster switching times, and lower power consumption.
Where To Use Field Effect Transistors
FETs are widely used in various electronic circuits, including amplifiers, switches, and voltage regulators. They are particularly useful in applications where low power consumption and high input impedance are required, such as in battery-powered devices and high-frequency circuits.
Key Features Of Field Effect Transistors
High input impedance
Faster switching times compared to BJTs
Lower power consumption
Higher current handling capacity
Low noise and high reliability
How To Use Field Effect Transistors
Select the appropriate type of FET for your application, considering factors such as voltage range and current handling capacity.
Ensure proper biasing and gate control to achieve desired performance characteristics.
Use FETs in a well-designed circuit with adequate heat sinking and protection against overvoltage and overcurrent conditions.
How Field Effect Transistors Is Manufactured
FETs are manufactured using various semiconductor materials, such as silicon and gallium arsenide, through a process involving epitaxy, diffusion, and patterning.
Technical Specification Of Field Effect Transistors
Maximum Drain-Source Voltage (Vds)
500 V
Continuous Drain Current (Id)
2 A
Maximum Power Dissipation (Pd)
10 W
Operating Temperature Range (Tj)
-40°C to +150°C
On-State Resistance (ron)
100 m?
The technical specifications of FETs are critical to ensure proper operation and reliability in electronic circuits. The maximum drain-source voltage (Vds) determines the withstand voltage of the device, while the continuous drain current (Id) specifies the maximum current that can be handled by the device. The maximum power dissipation (Pd) indicates the amount of heat that can be safely generated within the device. The operating temperature range (Tj) defines the acceptable ambient temperature for reliable operation. Finally, the on-state resistance (ron) characterizes the internal resistance of the device when conducting current.
Description Of Field Effect Transistors
Field effect transistors (FETs) are a type of transistor that uses an electric field to control the flow of current between two terminals, rather than a mechanical action as in bipolar junction transistors (BJTs).
Related Products & Synonyms Of Field Effect Transistors
The related products of FETs include other types of transistors, such as BJTs and insulated gate bipolar transistors (IGBTs). The synonyms for FET are Field Effect Transistor and Field-Effect Device.
