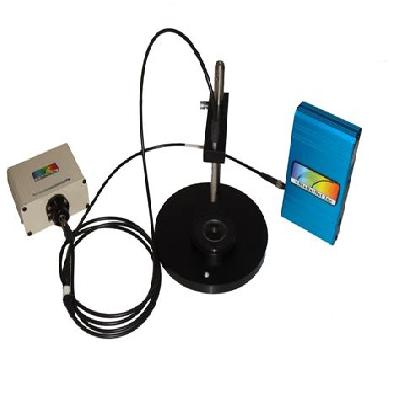

Film thickness measurement system is a device used to measure the thickness of thin films. It is an essential tool in various industrial applications, including semiconductor manufacturing, coating and printing industries, and research laboratories.
Film thickness measurement systems are designed to provide accurate measurements with high precision.
They are available in different types, such as laser interferometry, ellipsometry, and spectrophotometry.
Where To Use Film Thickness Measurement System
Film thickness measurement systems are widely used in various industries and applications, including:
Semiconductor manufacturing
Coefficient of friction testing
Vacuum coating
R&D laboratories
Key Features Of Film Thickness Measurement System
High accuracy and precision
Easy to use and operate
Fast measurement speed
Durable and long-lasting
How To Use Film Thickness Measurement System
Place the sample on the measurement stage
Adjust the measurement parameters according to the type of film and its thickness range
Take multiple measurements to ensure accuracy and precision
How Film Thickness Measurement System Is Manufactured
The manufacturing process of film thickness measurement systems involves several stages, including design and development, prototyping, testing and validation, and mass production.
Technical Specification Of Film Thickness Measurement System
Wavelength Range
200-1700nm
Thickness Range
1nm - 1000nm
Material
Si, SiO2, Al, TiN
Frequency
10-1000Hz
The technical specification of the film thickness measurement system includes a wavelength range of 200-1700nm, a thickness range of 1nm - 1000nm, and material capabilities including Si, SiO2, Al, TiN. The frequency range is from 10-1000Hz.
Description Of Film Thickness Measurement System
The film thickness measurement system is a device used to measure the thickness of thin films with high accuracy and precision. It is widely used in various industrial applications, including semiconductor manufacturing, coating and printing industries, and research laboratories.
Related Products & Synonyms Of Film Thickness Measurement System
Some related products of the film thickness measurement system include:
Thickness meters
Laser interferometry systems
Spectrophotometers
Synonyms of the film thickness measurement system include thin film thickness measurement system.
