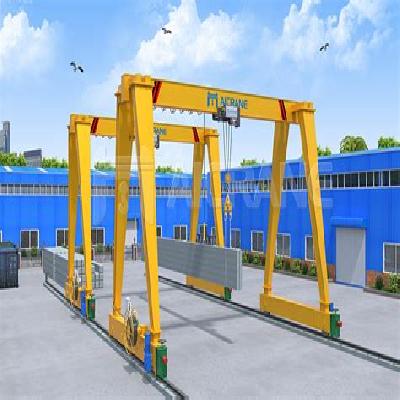

Gantry crane is a type of overhead crane that consists of two or more parallel girders supported by free-standing legs and end trucks at each end, providing the bridge between the supporting columns. It is commonly used in construction sites to lift heavy materials, equipment, and personnel.
Where To Use Gantry Crane
Gantry cranes are typically used in building construction, where they can be installed from the ground to support heavy loads and facilitate efficient material handling. They can also be used in other industries such as shipbuilding, oil refineries, and power plants.
Key Features Of Gantry Crane
High lifting capacity and long span length
Flexible design to accommodate various workspaces
Easy installation and operation
Low maintenance requirements
How To Use Gantry Crane
Inspect the crane before use to ensure proper functioning and safety
Load the material carefully and within the crane's capacity limits
Maintain a safe distance from the load and surrounding obstacles
Operate the crane with caution, following manufacturer guidelines
How Gantry Crane Is Manufactured
The manufacturing process of a gantry crane involves several stages, including design and planning, material selection and procurement, fabrication, assembly, testing, and quality control.
Technical Specification Of Gantry Crane
Load Capacity:
Up to 50 tons
Span Length:
Up to 30 meters
Lifting Height:
Up to 20 meters
Weight:
Approx. 10 tons
The technical specifications of a gantry crane are designed to ensure efficient and safe operation in various work environments. The load capacity, span length, lifting height, and weight are critical parameters that determine the crane's performance and suitability for specific applications.
Description Of Gantry Crane
A gantry crane is a versatile and heavy-duty overhead crane designed for lifting heavy loads in various industries, including construction, shipbuilding, oil refineries, and power plants.
