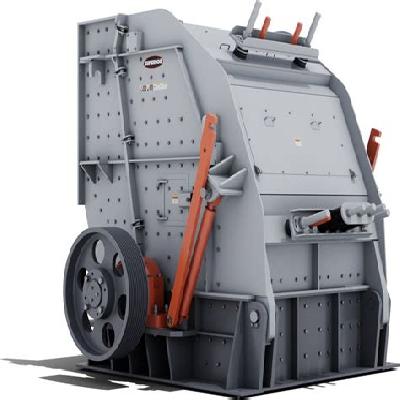

A horizontal shaft impact (HSI) crusher is a type of primary crusher that uses a rotating shaft to crush material against a stationary plate, known as the anvil. This design creates a high-speed, high-impact crushing action that breaks down materials into smaller sizes.
Where To Use Horizontal Shaft Impact Crusher
HSI crushers are commonly used in quarrying, mining, and recycling applications where high reduction ratios are required.
Key Features Of Horizontal Shaft Impact Crusher
High reduction ratio and high crushing efficiency
Ability to crush a wide range of materials, including rock, stone, and gravel
Easy maintenance and repair due to modular design
Fully adjustable crusher speed and operating parameters for optimal performance
How To Use Horizontal Shaft Impact Crusher
Feeding the crusher with materials to be crushed, typically through a vibrating feeder or conveyor belt
Adjusting the crusher speed and operating parameters as needed for optimal performance
Monitoring the crusher's output and making adjustments as necessary to maintain desired product size
Maintaining regular maintenance schedules to ensure optimal performance and extend equipment life
How Horizontal Shaft Impact Crusher Is Manufactured
HSI crushers are typically manufactured using high-strength steel alloys and advanced machining techniques to ensure precise tolerances and optimal performance.
Technical Specification Of Horizontal Shaft Impact Crusher
Capacity (t/h):
Up to 500 t/h
Rotor Diameter (mm):
1,500 mm
Power Range (kW):
250-500 kW
Weight (t):
15-30 t
The technical specification of the HSI crusher is designed to provide high reduction ratios and crushing efficiency, making it ideal for a variety of applications. The crusher's capacity can range from 250 to 500 t/h, depending on the specific model and configuration. The rotor diameter is typically around 1,500 mm, while the power range varies between 250-500 kW. Finally, the weight of the crusher ranges from 15 to 30 t.
Description Of Horizontal Shaft Impact Crusher
The HSI crusher is designed to provide high-quality crushed material with minimal fines and dust generation.
Related Products & Synonyms Of Horizontal Shaft Impact Crusher
Some related products to the HSI crusher include jaw crushers, cone crushers, and impact mills.
