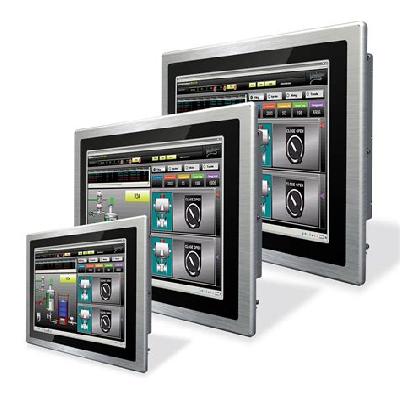

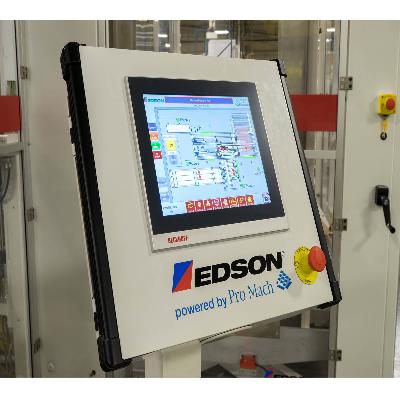

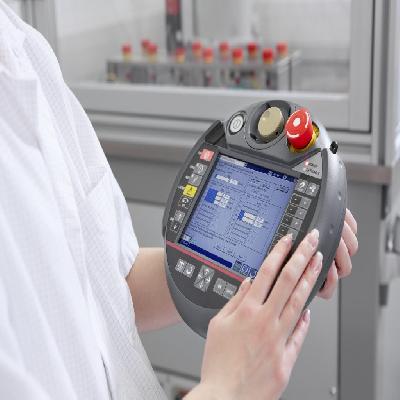

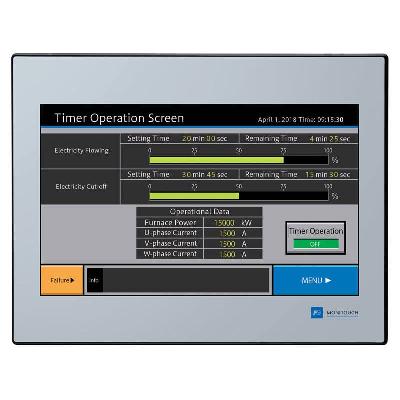

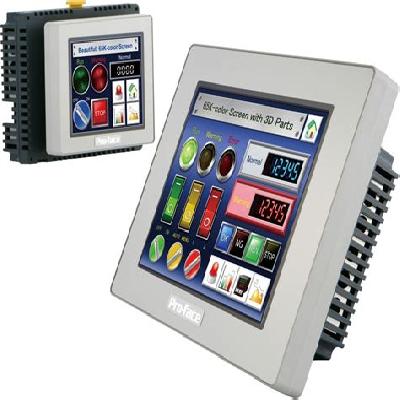

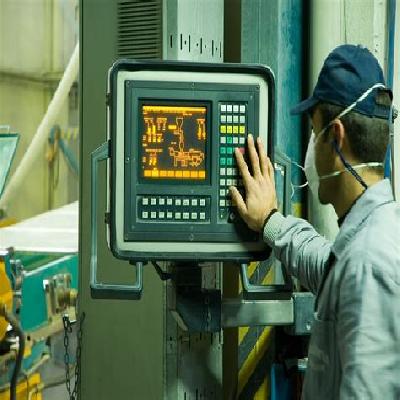

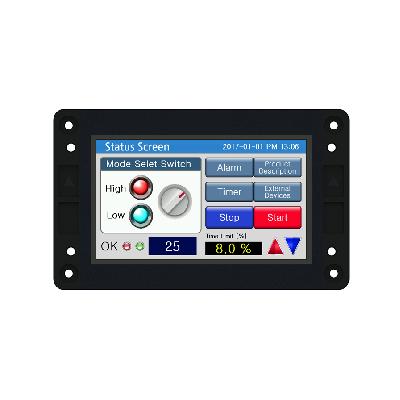

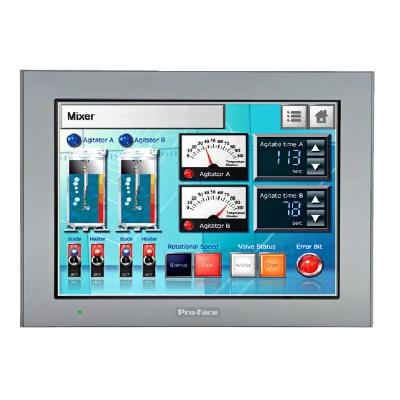

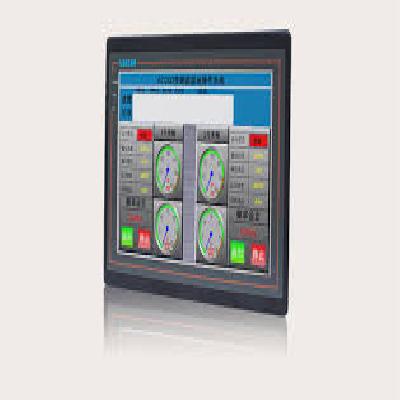

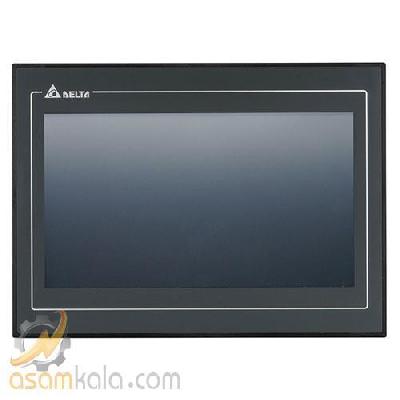

A human machine interface (HMI) is a system that allows users to interact with machines, devices, or processes through graphical user interfaces (GUIs). HMIs are used in various industrial applications to improve efficiency, productivity, and safety.
Where To Use Human Machine Interface
HMIs are used in various industries, including manufacturing, oil and gas, power generation, and healthcare. They can be applied to a range of processes, such as monitoring equipment performance, controlling production lines, or providing real-time data analysis.
Key Features Of Human Machine Interface
Graphical user interface for easy interaction
Data visualization and real-time monitoring
Control and automation capabilities
Error detection and alert systems
Scalability and customization options
How To Use Human Machine Interface
Configure HMI settings according to application requirements
Create custom dashboards for data visualization and monitoring
Program automation scripts for control and optimization
Train users on HMI operation and maintenance
Regularly update software and firmware for optimal performance
How Human Machine Interface Is Manufactured
The manufacturing process of HMIs involves several stages, including design, development, testing, and quality control. Manufacturers use various tools and technologies to create custom HMI solutions for specific applications.
Technical Specification Of Human Machine Interface
Brand:
Customizable
Power Supply:
120-240V AC, 50/60Hz
Voltage:
12-24V DC, 5A
Display Type:
7-inch touchscreen, resistive
Material:
Plastic, aluminum alloy
The technical specifications of HMIs can vary depending on the manufacturer and specific application requirements. The above table provides a general outline of typical specifications, including power supply, voltage, display type, and material.
Description Of Human Machine Interface
HMIs are designed to provide a user-friendly interface for interacting with machines, devices, or processes. They offer advanced features such as data visualization, control and automation capabilities, and error detection systems.
Related Products & Synonyms Of Human Machine Interface
The following products are related to HMIs:
Industrial control systems
SCADA (Supervisory Control and Data Acquisition) systems
