IGBT (Insulated Gate Bipolar Transistor) transistors are a type of high-power semiconductor device that combines the advantages of both MOSFETs and bipolar junction transistors. They are widely used in various industrial applications, including motor drives, power supplies, and renewable energy systems.
Where To Use Igbt Transistors
IGBT transistors are commonly used in applications that require high current and voltage handling, such as:
Industrial automation and control systems
Railway traction systems
Renewable energy systems (solar and wind power)

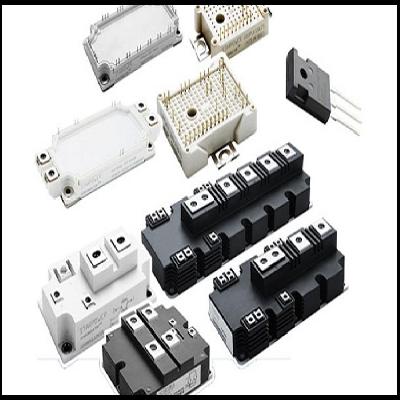

Electric vehicles and hybrid electric vehicles
Packaging and labeling machines
Key Features Of Igbt Transistors
High current and voltage handling capabilities
Low switching losses and high efficiency
Fast switching times and low noise
High surge current capability
Low thermal resistance and good heat dissipation
How To Use Igbt Transistors
Choose the correct IGBT transistor model based on the application requirements
Circuit design and layout should consider the IGBT's thermal characteristics
Mount the IGBT securely to a heat sink or other cooling device
Connect the IGBT according to the manufacturer's instructions
Maintain proper voltage and current supply, as well as ensure adequate cooling
How Igbt Transistors Is Manufactured
The manufacturing process of IGBT transistors involves several stages, including:
Material selection and preparation (silicon wafers)
N-type doping and patterning
P-type doping and patterning
Oxide growth and surface treatment
Metal contact formation and wire bonding
Technical Specification Of Igbt Transistors
Maximum Collector-Emitter Voltage (VCE)
650 V
Maximum Collector Current (IC)
40 A
Input Capacitance (Cies)
1.2 nF

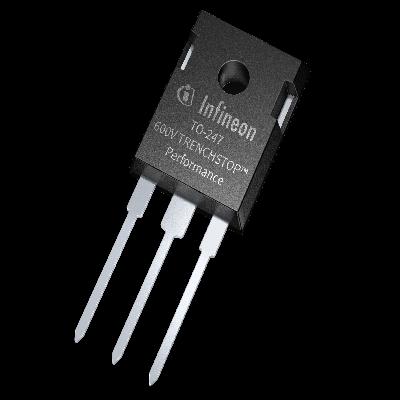

Module Type
TO-247
The technical specifications listed above provide a general overview of the IGBT transistor's capabilities and limitations. The maximum collector-emitter voltage (VCE) indicates the device's ability to handle high voltages, while the maximum collector current (IC) reflects its capacity for handling high currents. The input capacitance (Cies) affects the switching speed and efficiency of the device. Finally, the module type (TO-247) specifies the package style and dimensions.
The IGBT transistor's performance in various applications depends heavily on its technical specifications and operating conditions.
