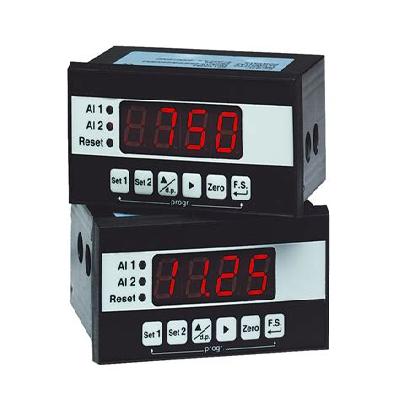

Indicator panels are a type of industrial equipment used to display vital information in real-time, allowing for efficient monitoring and control of processes. They are commonly found in laboratories, manufacturing facilities, and other environments where precise measurement is crucial.
Where To Use Indicator Panels
Indicator panels can be used in a variety of settings, including:
Control rooms for monitoring and controlling industrial processes
Laboratories for displaying experimental data
Maintenance areas for tracking equipment performance
Manufacturing lines for real-time production monitoring
Key Features Of Indicator Panels
Real-time data display for efficient monitoring and control
Variety of display types, including analog and digital displays
Multiple mounting options to accommodate different environments
Durable construction for reliable operation in harsh conditions
How To Use Indicator Panels
Connect the indicator panel to a power source and connect the signal cables to the process control system or data acquisition equipment.
Configure the display settings according to the specific requirements of the application, including scaling, offsetting, and units selection.
Cycle power on and off to initialize the unit and verify proper function.
How Indicator Panels Is Manufactured
The manufacturing process for indicator panels involves a combination of design, prototyping, testing, and quality control to ensure high reliability and precision. Materials selection includes durable plastics or metals for the enclosure and sensitive electronics components.
Technical Specification Of Indicator Panels
Voltage Rating:
12-24 VDC
Display Type:
Analog/Digital (User-selectable)
Mounting Type:
Panel Mount, DIN Rail Mount (Optional)
Panel Size:
100x100mm, 150x150mm (Other sizes available upon request)
Power Consumption:
5W (Average), 10W (Peak)
The technical specifications outlined above provide a general overview of the capabilities and requirements for indicator panels. However, specific details may vary depending on the application and configuration. It is essential to consult with the manufacturer or supplier to determine the optimal settings for your particular use case.
Description Of Indicator Panels
Indicator panels are designed to provide clear and concise visual representation of process parameters, allowing operators to quickly grasp the status of their systems. By incorporating multiple display types and customizable settings, indicator panels can be tailored to meet specific application requirements.
Related Products & Synonyms Of Indicator Panels
Other products that are similar to indicator panels include:
Alarm panels for alerting operators to critical conditions
Control panels for adjusting process parameters in real-time
