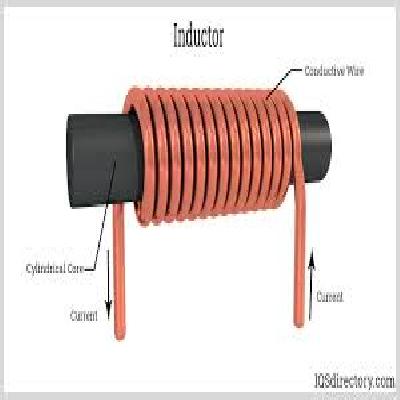

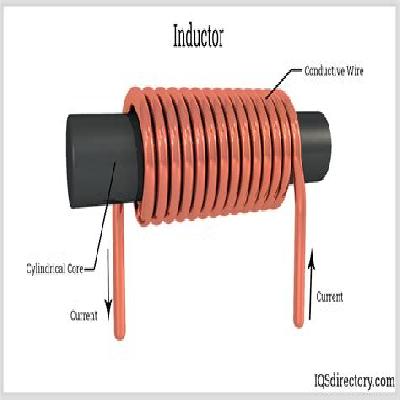

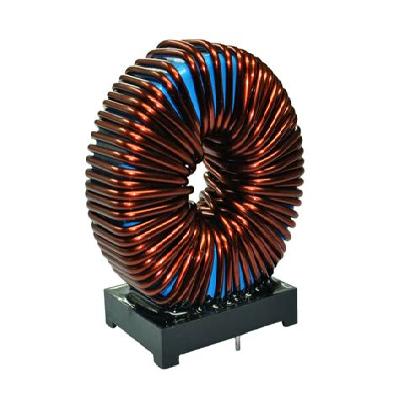

An induction coil is a type of electrical device that generates a high voltage through electromagnetic induction. It consists of a primary winding and a secondary winding, with the primary winding connected to an AC power source.
Where To Use Induction Coils
Induction coils are commonly used in various applications, including automotive ignition systems, medical equipment, and industrial control circuits.
Key Features Of Induction Coils
High voltage generation through electromagnetic induction
Compact and lightweight design
Low power consumption
High reliability and durability
How To Use Induction Coils
Connect the primary winding to an AC power source
Adjust the number of turns in the secondary winding according to the desired output voltage
Use a suitable capacitor and resistor to filter and regulate the output signal
How Induction Coils Is Manufactured

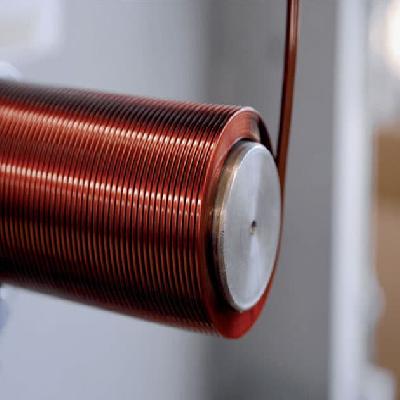

The manufacturing process of induction coils involves several steps, including wire winding, insulation, and testing. The primary and secondary windings are wound separately using a precision winding machine, and then assembled together.
Technical Specification Of Induction Coils
Inductance Range (mH)
10-500 mH
Current Rating (A)
1-50 A
Operating Frequency (Hz)
50-100 Hz
Core Material
Ferrite, Silicon Steel
The inductance range of induction coils can vary from 10-500 mH, depending on the application and design requirements. The current rating can also vary from 1-50 A, while the operating frequency is typically between 50-100 Hz. The core material used for induction coils is usually ferrite or silicon steel, which provides high magnetic permeability and low energy loss.
Description Of Induction Coils
Induction coils are designed to generate high voltage through electromagnetic induction, making them suitable for various applications such as automotive ignition systems, medical equipment, and industrial control circuits.
Related Products & Synonyms Of Induction Coils
Some related products to induction coils include ignition coils, spark plugs, and transformers. The synonyms for induction coils are spark coil and copper induction coil.
