Industrial microscope is a specialized optical instrument used in various industries for observing and measuring small objects or samples under magnification. It is designed to provide high-quality images, precise measurements, and detailed observations of materials, components, or other objects.
Where To Use Industrial Microscope
Industrial microscopes are commonly used in industries such as manufacturing, quality control, research and development, materials science, and aerospace. They can be used to inspect and measure small components, analyze material properties, or examine defects and flaws.
Key Features Of Industrial Microscope
High-resolution imaging and precise measurements
Durable construction and robust design for industrial use
Multiple objective lenses and eyepiece options for flexibility
Illumination systems for optimal image quality
Advanced stage and manipulation systems for precise sample handling
How To Use Industrial Microscope
Place the sample on the stage and secure it with clips or a slide holder
Choose the appropriate objective lens and eyepiece for the desired magnification and resolution
Select the illumination type (brightfield, darkfield, phase contrast, etc.) and adjust as needed
Analyze and measure the sample using the built-in measurement tools and software
How Industrial Microscope Is Manufactured
The manufacturing process for industrial microscopes typically involves a combination of manual assembly and precision engineering techniques. High-quality materials such as aluminum, stainless steel, and glass are used to construct the microscope's mechanical components, while advanced optics and coatings are applied to optimize image quality.
Technical Specification Of Industrial Microscope
Magnification Range:
50x to 2000x
Eyepiece Magnification:
10x to 20x
Objective Lenses:
5x, 10x, 20x, 50x
Field of View:
10mm to 50mm
Stage Size:
100x150mm to 200x300mm
Working Distance:
50mm to 200mm
Illumination Type:
Brightfield, Darkfield, Phase Contrast, etc.
The technical specifications of an industrial microscope are critical in determining its performance and capabilities. The magnification range, eyepiece magnification, objective lenses, field of view, stage size, working distance, and illumination type all contribute to the overall image quality and measurement accuracy.
Description Of Industrial Microscope
An industrial microscope is a highly specialized optical instrument designed for industrial use, providing high-resolution imaging and precise measurements of small objects or samples.
Related Products & Synonyms Of Industrial Microscope

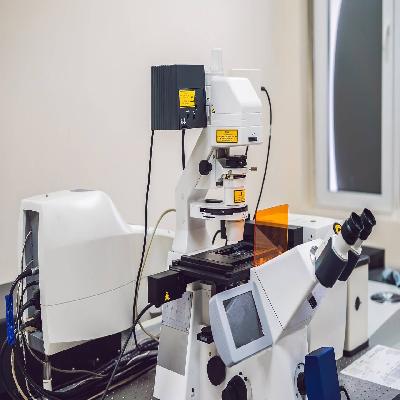

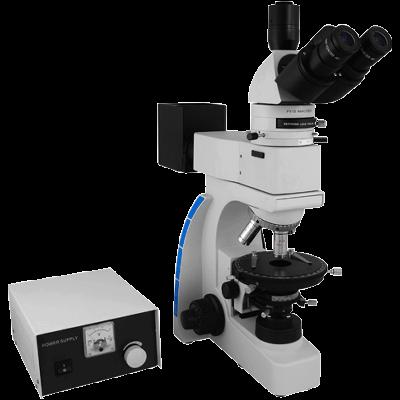

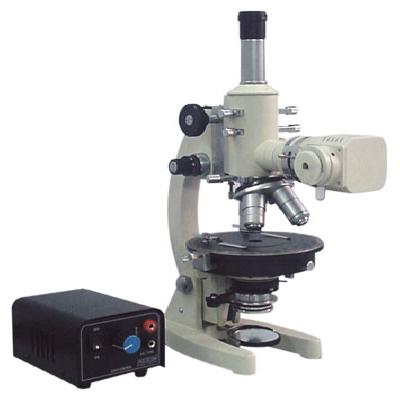

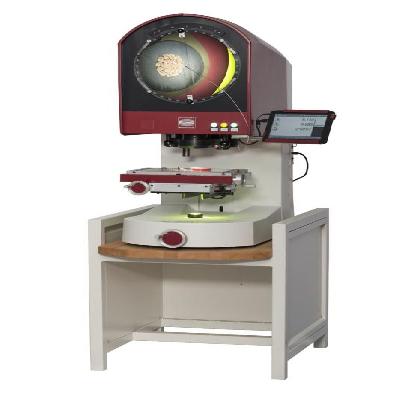

Industrial microscopes are often related to and synonymous with other specialized optical instruments, such as metallurgical microscopes, gemological microscopes, measuring microscopes, polariscopes, toolmaker microscopes, inverted metallurgical microscopes, binocular metallurgical microscopes, vernier microscopes, trinocular metallurgical microscopes, inclined tube microscopes, hand and table microtomes, automatic microtome knife sharpeners, shadowgraph machines, acoustic microscopes, and trinocular ore microscopes. Zeiss Industrial Microscope is a specific example of an industrial microscope.
