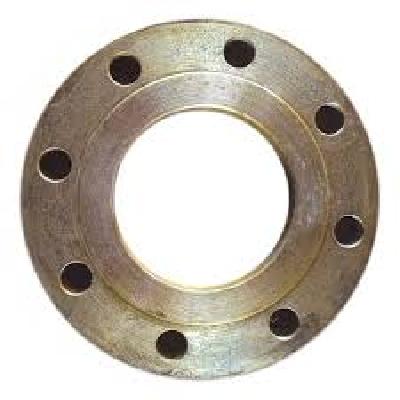

Lap joint flanges are a type of pipe fitting used in piping systems, particularly in high-temperature and high-pressure applications. They are designed to join two pipes together by overlapping them, creating a strong and leak-proof connection.
Where To Use Lap Joint Flanges
Lap joint flanges are commonly used in industries such as oil and gas, power generation, and chemical processing. They are ideal for applications where high temperatures and pressures require a strong and reliable connection.
Key Features Of Lap Joint Flanges
Strong and leak-proof connection
Designed for high-temperature and high-pressure applications
Used in industries such as oil and gas, power generation, and chemical processing
Available in various materials and sizes
How To Use Lap Joint Flanges
Inspect the flange and pipes for any damage or debris
Clean the surfaces of the flange and pipes with a wire brush
Apply a thin layer of lubricant to the gasket
Place the flange on the pipe, ensuring proper alignment
Tighten the bolts in a star pattern to avoid damaging the flange or pipe
How Lap Joint Flanges Is Manufactured
Lap joint flanges are manufactured using high-quality materials and advanced machinery to ensure precise dimensions and tolerances. The manufacturing process involves cutting, bending, and welding the metal sheets to form the flange shape.
Technical Specification Of Lap Joint Flanges
Size:
Available in various sizes, from 1/2" to 48"
Material:
Available in carbon steel, stainless steel, and alloy steel
Pressure Rating:
Available up to 10,000 psi
Connection Type:
Slip-on and socket weld connections available
Temperature Rating:
Available up to 1000°F (538°C)
The technical specification of lap joint flanges is critical in ensuring the safe and reliable operation of piping systems. The specifications include size, material, pressure rating, connection type, and temperature rating, among others. It is essential to select a flange that meets the specific requirements of the application to ensure optimal performance and longevity.
Description Of Lap Joint Flanges
Lap joint flanges are a type of pipe fitting used to join two pipes together by overlapping them, creating a strong and leak-proof connection.
Related Products & Synonyms Of Lap Joint Flanges
Some related products of lap joint flanges include:
