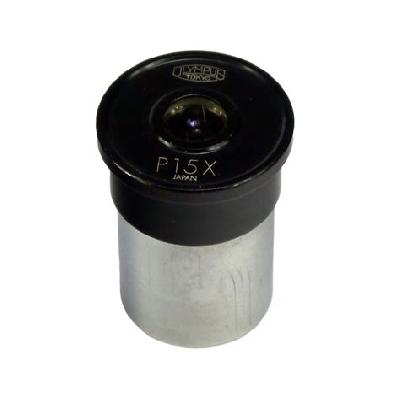

The microscope eyepiece is an essential component of a microscope, designed to enhance the magnification and clarity of microscopic images. It is typically mounted on the side of the ocular lens and plays a crucial role in adjusting the image quality.
Where To Use Microscope Eyepiece
Microscope eyepieces are commonly used in various laboratories, research facilities, and educational institutions for observing microscopic samples.
Key Features Of Microscope Eyepiece
High-quality glass lenses for clear and sharp images
Adjustable diopter setting for individualized focus
Robust and durable construction for long-lasting performance
Ergonomic design for comfortable use over extended periods
How To Use Microscope Eyepiece
Mount the eyepiece on the microscope's ocular lens
Adjust the diopter setting to achieve clear focus
Magnify the sample using the microscope's objective lenses
Orient the image for optimal viewing and recording
How Microscope Eyepiece Is Manufactured
The production of microscope eyepieces involves precise craftsmanship and quality control measures to ensure high-performance optics.
Technical Specification Of Microscope Eyepiece
Magnification Range:
10x - 20x
Field of View:
23mm x 18.5mm
Eye Relief:
20mm
Diopter Adjustment Range:
-5 to +3 Diopters
Exit Pupil Diameter:
1.8mm
Lens Diameter:
22mm
Eyepiece Tube Diameter:
16mm
The technical specifications of the microscope eyepiece are carefully designed to provide optimal performance in various microscopic applications. The adjustable diopter setting allows for individualized focus, while the high-quality glass lenses ensure clear and sharp images. The robust construction ensures long-lasting performance, making it a reliable choice for laboratory use.
Description Of Microscope Eyepiece
The microscope eyepiece is a crucial component of the microscope, designed to enhance magnification and image clarity.
Related Products & Synonyms Of Microscope Eyepiece
The microscope eyepiece is closely related to other optical components, such as objective lenses and condensers.
