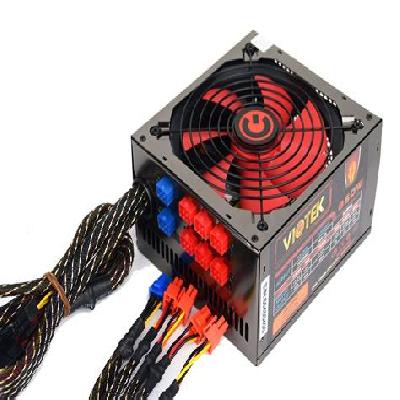

A modular power supply is a type of power supply that uses multiple modules to provide clean and regulated power to electrical devices. Each module has its own input and output connections, allowing for flexibility in designing customized power systems.
Where To Use Modular Power Supply
Modular power supplies are ideal for use in industrial settings, such as factories and data centers, where high-powered equipment requires clean and regulated power.
Key Features Of Modular Power Supply
High power density for compact designs
Modular design for easy maintenance and upgradeability
Wide range of input voltage compatibility
High efficiency with low heat generation
Compact footprint for space-saving installations
How To Use Modular Power Supply
Connect the input power cables to the corresponding modules
Route the output power cables to the load devices
Ensure proper grounding and earthing for safety
Monitor the system performance and adjust as needed
How Modular Power Supply Is Manufactured
The manufacturing process involves various stages, including component selection and procurement, PCB design and fabrication, module assembly, and final testing.
Technical Specification Of Modular Power Supply
Input Voltage:
85-132V AC, 160-264V DC
Frequency:
47-63Hz
Fan Bearing Type:
Ball bearing with high-speed shaft
Operating Temperature:
-20°C to +70°C
The technical specification of a modular power supply involves detailed information about its input voltage, frequency, fan bearing type, and operating temperature. The input voltage range must be compatible with the available AC or DC power sources in the installation environment. The frequency range should also match the local electrical grid frequency to prevent power factor correction issues. The fan bearing type is crucial for determining the noise level and lifespan of the product. Finally, the operating temperature must be suitable for the application environment to ensure reliable operation.
Description Of Modular Power Supply
A modular power supply is a compact and efficient power conversion device designed to provide regulated DC output voltage for electronic equipment in industrial settings.
Related Products & Synonyms Of Modular Power Supply
The terms related to modular power supply include "modular DC power supply," "industrial power conversion module," and "modular AC-DC converter." Some popular related products are industrial-grade DC power supplies, AC-DC converters with built-in protections, and programmable DC power sources.
