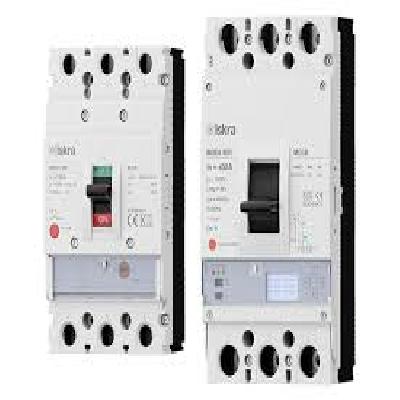

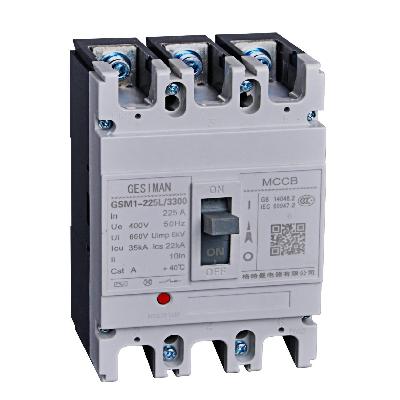

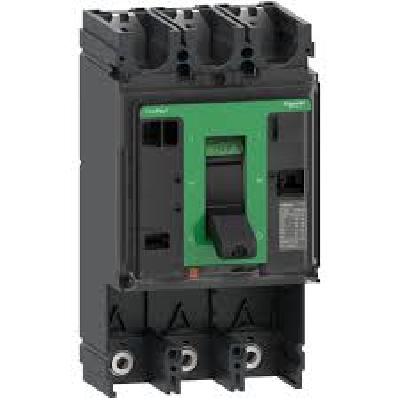

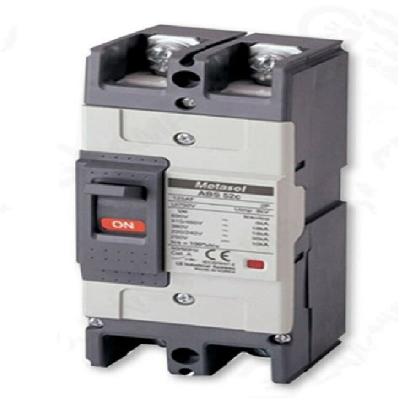

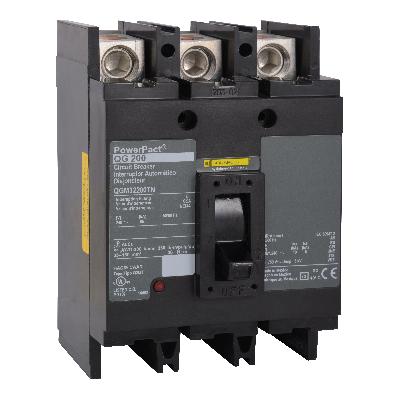

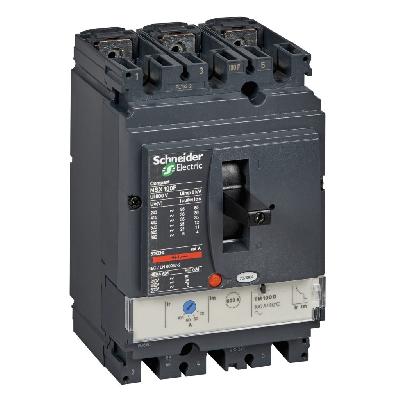

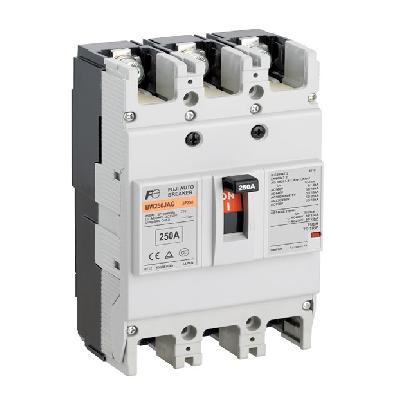

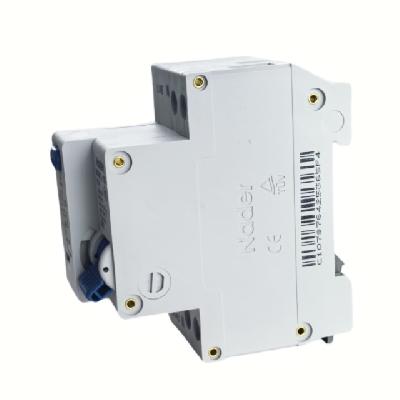

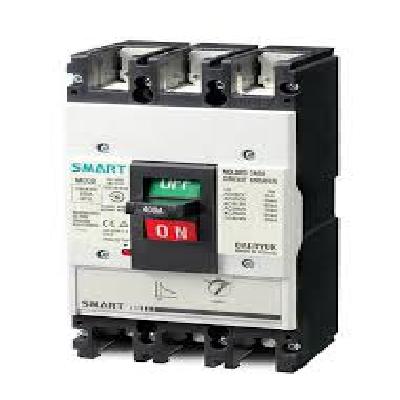

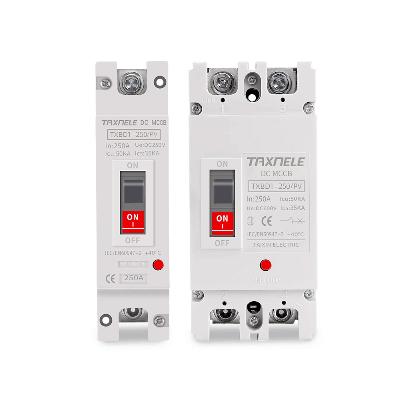

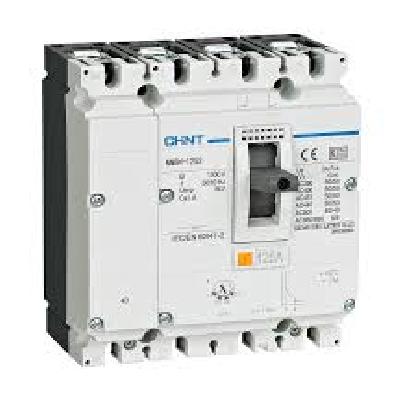

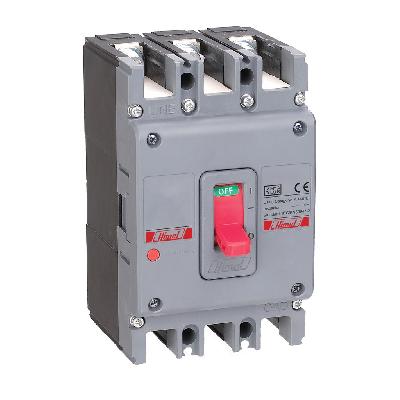

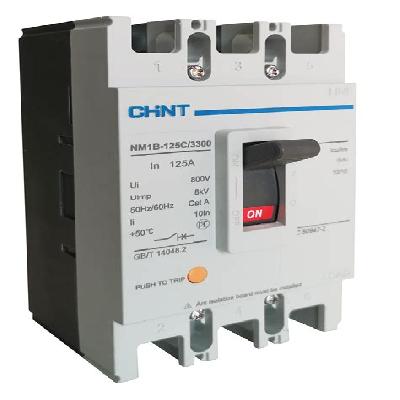

What Is Molded Case Circuit Breaker

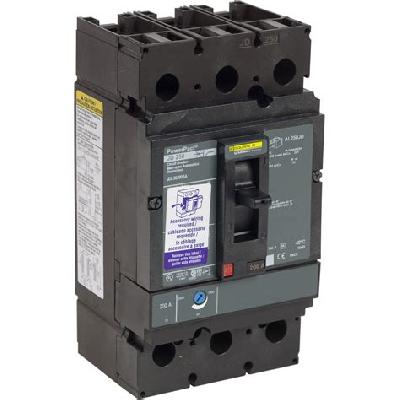

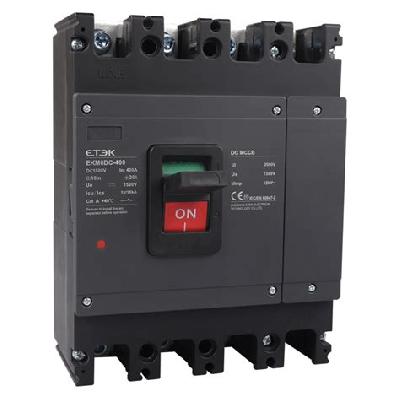

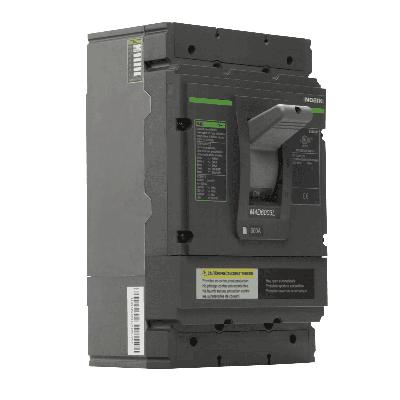

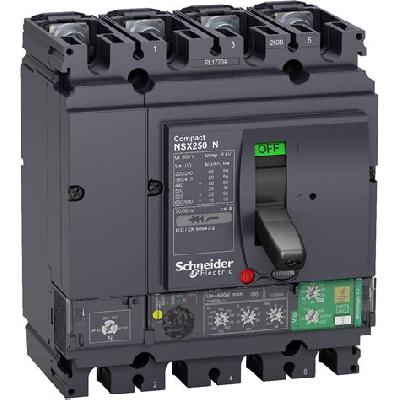

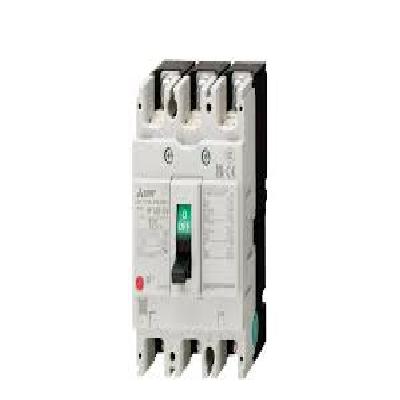

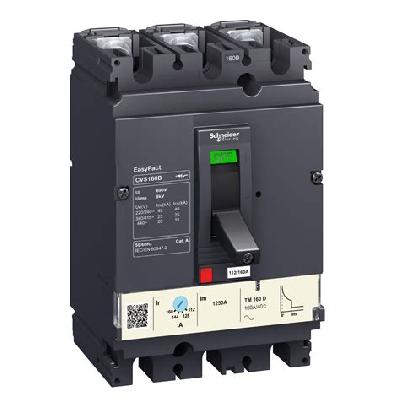

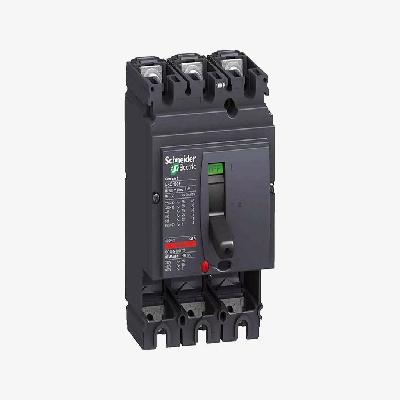

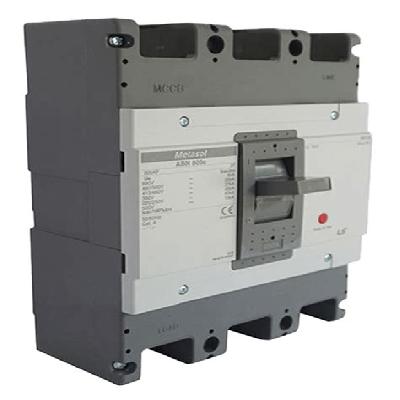

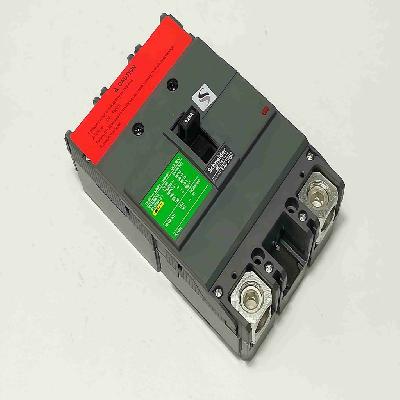

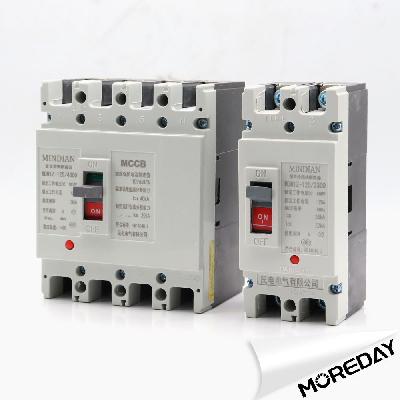

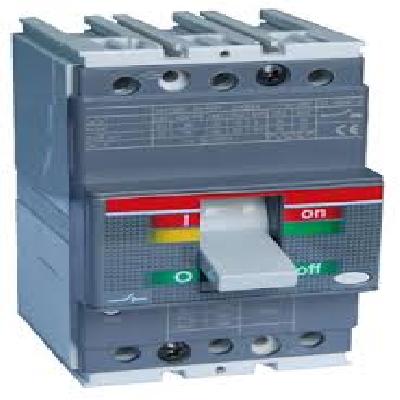

A molded case circuit breaker, commonly referred to as a MCCB, is an industrial device designed to protect electrical circuits from damage caused by excessive current flow. It consists of a molded plastic housing containing a set of contacts and a spring-operated mechanism that opens the circuit when a predetermined current level is exceeded.

Where To Use Molded Case Circuit Breaker

Molded case circuit breakers are widely used in industrial settings, including factories, power plants, and construction sites, where high currents and voltages are common. They are particularly useful for protecting circuits that supply electrical loads such as motors, transformers, and generators.

Key Features Of Molded Case Circuit Breaker

• High interrupting capacity for safe disconnection of electrical circuits
• Rugged molded plastic housing for durability and resistance to environmental factors
• Easy-to-operate mechanism with clear indicators for user convenience
• Wide range of current ratings and voltage levels available
• Compact design for space-saving installation in industrial settings

How To Use Molded Case Circuit Breaker

• Install the MCCB in a suitable location, taking into account environmental factors and accessibility requirements
• Set the current rating according to the specific needs of the electrical circuit being protected
• Ensure proper connection of the MCCB to the electrical circuit using wire or busbar
• Maintain regular inspections to ensure the MCCB is functioning correctly and replace it as necessary

How Molded Case Circuit Breaker Is Manufactured

The manufacturing process for molded case circuit breakers typically involves a combination of computer-aided design (CAD) software, precision machining, and quality control measures to ensure high reliability and performance.

Technical Specification Of Molded Case Circuit Breaker

The technical specification of the molded case circuit breaker is critical in ensuring its suitability for a particular application. The rated current, interrupting capacity, voltage, and frame size are key parameters that must be carefully selected to match the electrical requirements of the protected circuit.

Description Of Molded Case Circuit Breaker

A molded case circuit breaker is a compact, rugged device designed to provide reliable protection for electrical circuits in industrial settings. Its high interrupting capacity and wide range of current ratings make it suitable for a variety of applications, from small motor control circuits to large power distribution systems.

Related Products & Synonyms Of Molded Case Circuit Breaker

The molded case circuit breaker is often used in conjunction with other electrical protection devices, such as fuses and circuit breakers. It may also be referred to by synonyms like MCCB switch or insulated case circuit breaker.
