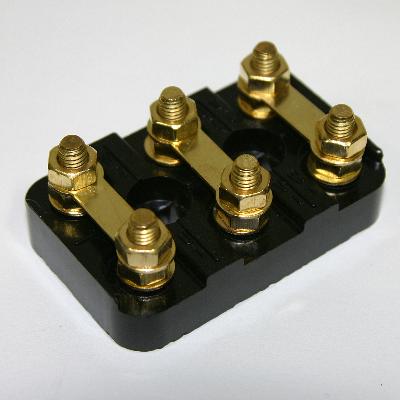

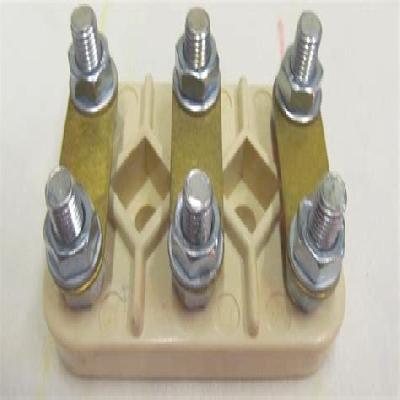

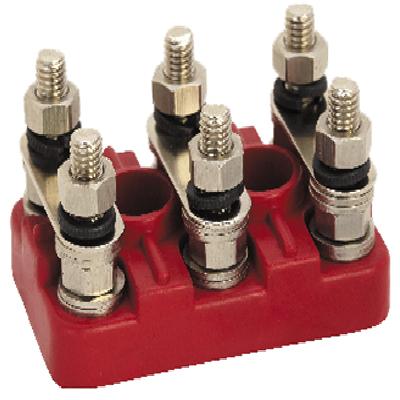

A motor terminal block is a type of electrical connector used to connect and disconnect the power supply to an electric motor. It typically consists of multiple terminals or lugs that are connected to a common bus bar, allowing for easy connection and disconnection of power cables.
Where To Use Motor Terminal Block
Industrial settings, such as factories and manufacturing plants.
Power generation and transmission facilities.
Motor repair shops and maintenance facilities.
Construction sites and building maintenance projects.
Key Features Of Motor Terminal Block
Multiple terminals or lugs for connecting power cables.
Durable construction to withstand harsh industrial environments.
Easy-to-use design for safe and efficient operation.
How To Use Motor Terminal Block
Connect power cables to the terminals or lugs.
Ensure the bus bar is securely connected to the motor terminals.
Verify that all connections are secure and tight before powering up the motor.
Regularly inspect and maintain the terminal block for wear and tear.
How Motor Terminal Block Is Manufactured
Motor terminal blocks are typically manufactured using high-quality materials, such as copper or aluminum, and are designed to withstand harsh industrial environments. The manufacturing process involves shaping and forming the metal into the desired shape, followed by assembly and testing.
Technical Specification Of Motor Terminal Block
Number of Poles:
3
Material:
Copper
Current Rating:
30A
Voltage:
240V
Temperature Resistance:
-40°C to 120°C
The technical specification of a motor terminal block is critical in ensuring safe and efficient operation of the device. The specifications outlined above provide a comprehensive overview of the device's capabilities and limitations.
Description Of Motor Terminal Block
A motor terminal block is a type of electrical connector used to connect and disconnect the power supply to an electric motor.
Related Products & Synonyms Of Motor Terminal Block
Some related products to motor terminal blocks include:
