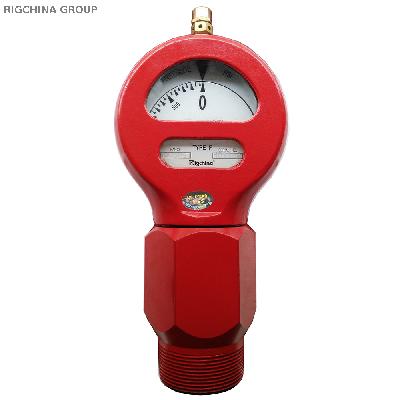

A mud pressure gauge is a device used to measure the pressure of mud or drilling fluid in an oil well during drilling operations. It provides critical information about the mud's pressure, which helps drillers maintain safe operating conditions and optimize drilling performance.
Where To Use Mud Pressure Gauge
Mud pressure gauges are commonly used in oil and gas exploration, drilling, and completion operations. They can be installed on the rig floor or downhole to monitor mud pressure in real-time.
Key Features Of Mud Pressure Gauge
Accurate pressure measurement
Durable and rugged design
Easy-to-read display
High-temperature resistance
Compact size for easy installation
How To Use Mud Pressure Gauge
Mount the gauge on the rig floor or downhole
Connect the gauge to the mud system
Set the measurement range according to the drilling operation
Monitor pressure readings in real-time
Adjust drilling parameters as needed to maintain safe operating conditions
How Mud Pressure Gauge Is Manufactured
Mud pressure gauges are typically manufactured using high-quality materials, such as stainless steel or brass, to ensure durability and accuracy. The manufacturing process involves several stages, including design, prototyping, testing, and final assembly.
Technical Specification Of Mud Pressure Gauge
Pressure Range:
0-10,000 psi
Display Type:
Digital LCD display
Connection Type:
threaded connections
Dial Size:
3.5 inches (8.9 cm)
Material:
Stainless steel (SS 304)
The technical specifications of the mud pressure gauge ensure accurate and reliable measurement of mud pressure in various drilling operations.
Description Of Mud Pressure Gauge
The mud pressure gauge is a compact and rugged device designed to measure the pressure of mud in oil wells during drilling operations. It provides real-time measurement data, helping drillers optimize drilling performance and maintain safe operating conditions.
Related Products & Synonyms Of Mud Pressure Gauge
Some related products to the mud pressure gauge include drilling fluid pumps, mud tanks, and drill bit lubricators. Synonyms for the mud pressure gauge include Mud Pump Pressure Gauge, Mud Pressure Gage, and Mud Pump Pressure Gage.
