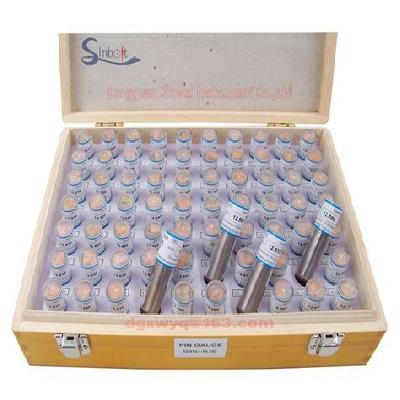

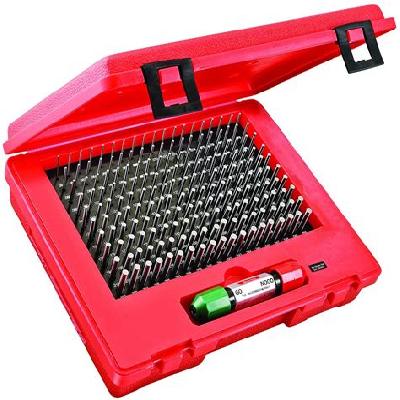

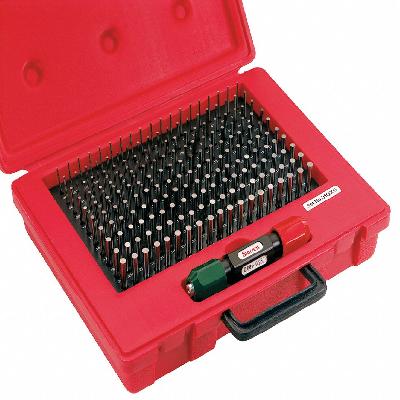

Pin gauges are precision measuring tools used in various industrial and laboratory settings to measure the diameter or size of small objects, holes, or spaces.
Where To Use Pin Gauges
Pin gauges are commonly used in industries such as automotive, aerospace, medical equipment, and manufacturing for precise measurements.
Key Features Of Pin Gauges
High precision and accuracy
Available in various materials, such as steel, brass, or stainless steel
Durable construction for long-lasting use
Easy to read and interpret measurements
How To Use Pin Gauges
Inspect the gauge for any damage or wear before use
Choose the correct size of pin gauge for the measurement task
Place the pin gauge into the hole or space to be measured
Read and record the measurements carefully
How Pin Gauges Is Manufactured
Pin gauges are manufactured using precision machining techniques, such as grinding or turning, to achieve high accuracy and durability.
Technical Specification Of Pin Gauges
Measuring Range:
0.1 mm to 10 mm
Material:
Stainless Steel (AISI 304)
Number of Pins:
5 pins
Brand:
Omicron Instruments
Hardness:
58-62 HRC (Rockwell C)
Length:
150 mm
The technical specifications of pin gauges are critical in ensuring accuracy and reliability in industrial and laboratory settings. The measuring range, material, number of pins, brand, hardness, and length of the gauge all contribute to its overall performance and durability.
Description Of Pin Gauges
Pin gauges are precision measuring tools used in various industrial and laboratory settings to measure the diameter or size of small objects, holes, or spaces.
Related Products & Synonyms Of Pin Gauges
The related products of pin gauges include micrometers, calipers, and dial indicators. The synonyms for pin gauges are flush pin gauge, pin gages, measuring pin gauges, measuring pin gages, and measuring pin.
