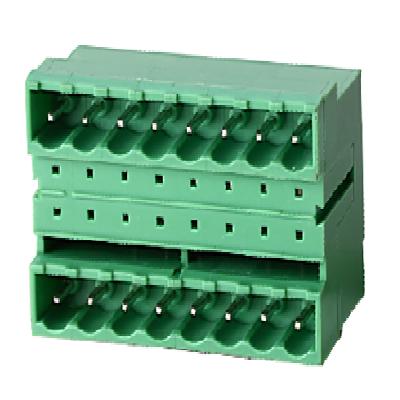

Pluggable terminal blocks are a type of electrical connector used in industrial settings to connect and disconnect wires from circuits. They are designed for high-reliability applications where frequent connections and disconnections are necessary.
Where To Use Pluggable Terminal Blocks
Pluggable terminal blocks are commonly used in industrial control panels, motor control centers, and other applications where high-current connections are required. They can also be used for circuit testing and troubleshooting due to their easy-to-use design.
Key Features Of Pluggable Terminal Blocks
High-reliability connections and disconnections
Easy-to-use design for frequent use
Available in various current ratings and voltage ranges
Can be used with a variety of wire sizes
Manufactured with high-quality materials for durability
How To Use Pluggable Terminal Blocks
Connect the terminal block to the circuit by inserting the plug into the socket.
Tighten the screws firmly to ensure secure connections.
To disconnect, simply pull out the plug from the socket.
Repeat as necessary for frequent use.
How Pluggable Terminal Blocks Is Manufactured
Pluggable terminal blocks are manufactured using high-quality materials and strict quality control processes to ensure reliable connections and durability. The manufacturing process involves precise cutting, drilling, and assembly of the components to meet specific current ratings and voltage requirements.
Technical Specification Of Pluggable Terminal Blocks
Specification
Detail
Pitch
5mm or 7.62mm (customizable)
Current Rating
Up to 35A (varies depending on model)
Voltage Range
DC 24V, AC 250V (varies depending on model)
Wire Size
From 0.5mm^2 to 10mm^2 (varies depending on model)
Number of Poles
Up to 16 poles (varies depending on model)
The specification table above shows the technical details of pluggable terminal blocks, including pitch, current rating, voltage range, wire size, and number of poles. The specific values for each specification may vary depending on the model or manufacturer.
Description Of Pluggable Terminal Blocks
Pluggable terminal blocks are designed for industrial applications where high-reliability connections and disconnections are necessary. They offer a convenient and easy-to-use solution for frequent use, making them ideal for circuit testing and troubleshooting.
Related Products & Synonyms Of Pluggable Terminal Blocks
Some related products to pluggable terminal blocks include:

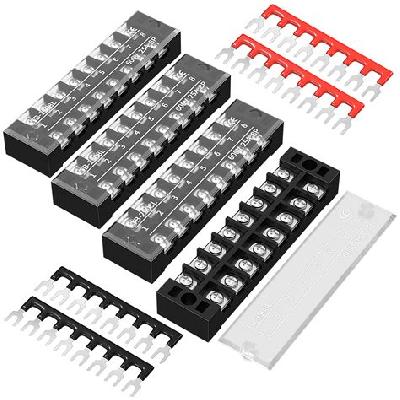

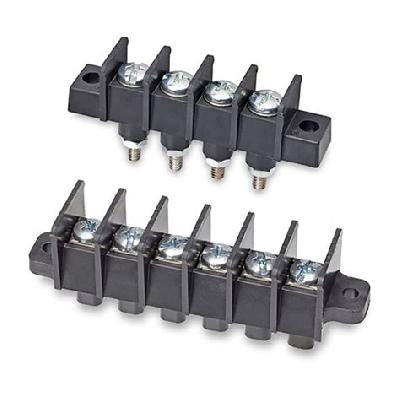

Terminal strips
Multiconductor cables
Plug connectors
Some synonyms for pluggable terminal blocks include:
