A power insulator is a device used in electrical systems to provide insulation between high-voltage conductors and ground. It plays a crucial role in ensuring the safe and efficient transmission of electricity.
Where To Use Power Insulator
Power insulators are commonly used in electrical substations, transmission lines, and distribution systems. They can be found in both indoor and outdoor applications, depending on the specific requirements of the system.
Key Features Of Power Insulator
High Voltage Rating: Capable of withstanding high voltage levels, ensuring safe transmission and distribution of electricity.
Material Quality: Made from durable materials that can withstand harsh environmental conditions, such as extreme temperatures and weather.
Tensile Strength: Designed to withstand mechanical stress and strain, providing reliable performance over time.
Color Coding: Equipped with color-coded labels for easy identification and installation.
How To Use Power Insulator
Installation: Install power insulators in accordance with manufacturer's instructions and local electrical codes.
Regular Maintenance: Regularly inspect and maintain power insulators to ensure optimal performance and safety.
How Power Insulator Is Manufactured
Power insulators are manufactured using a combination of advanced materials and manufacturing processes. The exact process may vary depending on the specific design and requirements of the product.
Technical Specification Of Power Insulator
Voltage Rating:
Up to 500 kV
Material:
High-grade porcelain or ceramic
Tensile Strength:
Up to 50 kN
Color:
Blue or red, depending on voltage level
The technical specification of power insulators is critical in ensuring their safe and reliable operation. The voltage rating, material quality, tensile strength, and color coding are all important factors that must be carefully considered when selecting a power insulator for a particular application.
In addition to the technical specifications listed above, other relevant details may include the insulation resistance, flashover voltage, and withstand voltage of the power insulator. It is also essential to consider the environmental conditions in which the power insulator will operate, including temperature, humidity, and exposure to weathering agents.
Description Of Power Insulator
A power insulator is a type of electrical insulation used to prevent the flow of electricity between conductors and ground. It consists of a high-voltage rating, made from durable materials such as porcelain or ceramic, with a tensile strength capable of withstanding mechanical stress.
Related Products & Synonyms Of Power Insulator

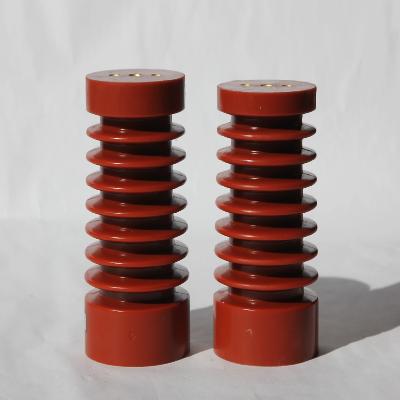

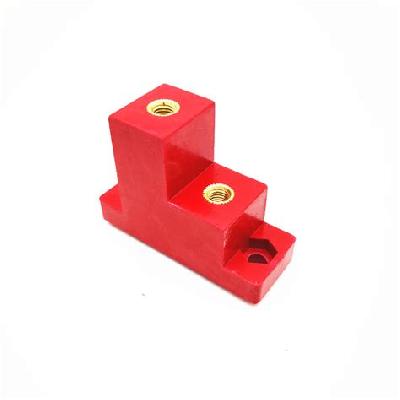

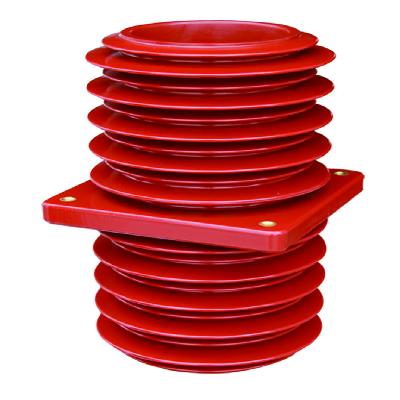

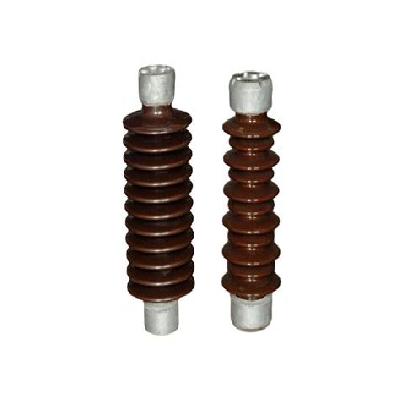

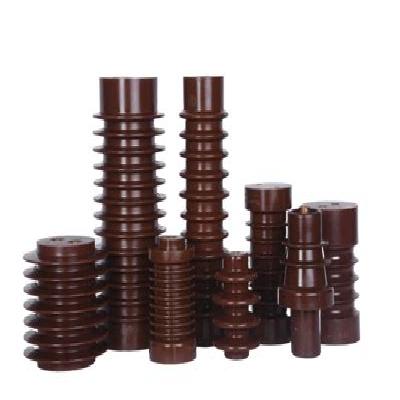

Power insulators are related to various other electrical components, including post insulators, low tension insulators, high tension insulators, solid core insulators, epoxy support insulators, high voltage insulators, step insulators, bus duct insulators, insulation enhancement systems, and epoxy housing.
The synonyms of power insulator include post insulator, low tension insulator, high tension insulator, solid core insulator, epoxy support insulator, high voltage insulator, step insulator, bus duct insulator, insulation enhancement system, and epoxy housing.
