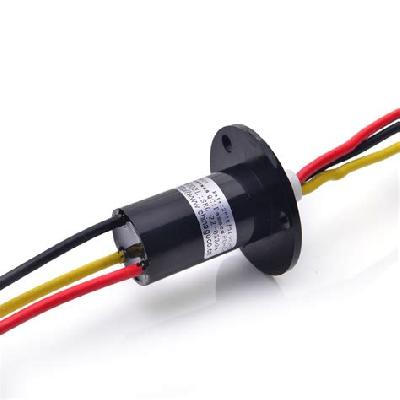

A power slip ring is an electrical component used to transmit power and signals between two rotating or moving parts, typically in industrial applications such as power generation, transmission, and distribution.
Where To Use Power Slip Ring
Power slip rings are used in various industrial applications, including:
Generators and motors
Pumps and compressors
Cutting machines and drilling equipment
Conveyer belts and roller conveyors
Moving platforms and rotating machinery
Key Features Of Power Slip Ring
High current and voltage ratings
Low resistance and low power loss
Long lifespan and high reliability
Maintenance-free operation
Compact design and lightweight construction
How To Use Power Slip Ring
Install the power slip ring between the rotating parts, ensuring proper alignment and secure mounting.
Connect the electrical leads to the input and output terminals of the power slip ring.
Adjust the slip ring's settings according to the application requirements, such as current and voltage ratings.
Monitor the slip ring's performance regularly, checking for signs of wear or damage.
How Power Slip Ring Is Manufactured
The manufacturing process of power slip rings involves several stages, including:
Design and prototyping
Metal fabrication and machining
Electrical winding and assembly
Testing and quality control
Technical Specification Of Power Slip Ring
Current Rating:
500 A
Number of Circuits:
3
Voltage Rating:
1000 V
Speed Rating:
500 RPM
Protection:
Overcurrent, Overvoltage, and Thermal protection
The technical specifications of the power slip ring are designed to meet the requirements of various industrial applications. The current rating of 500 A ensures efficient power transmission, while the number of circuits and voltage rating cater to different application needs. The speed rating of 500 RPM provides flexibility in high-speed applications. Additionally, the protection features ensure safe operation under various conditions.
Description Of Power Slip Ring
The power slip ring is an electrical component designed to transmit power and signals between rotating or moving parts in industrial applications.
Related Products & Synonyms Of Power Slip Ring
The power slip ring is related to other electrical components such as:
