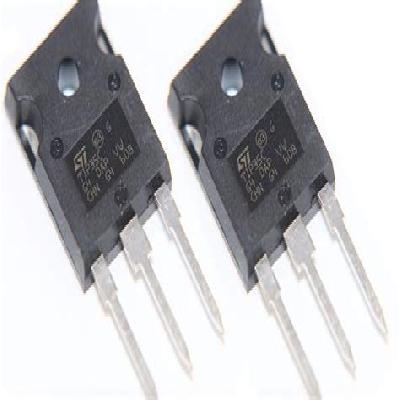

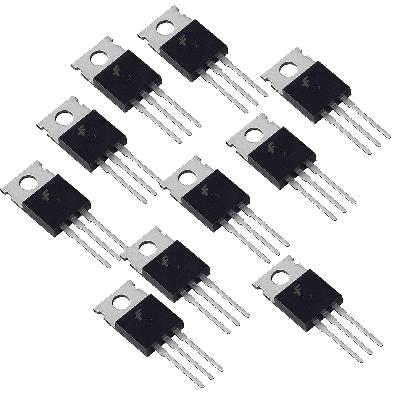

Power transistors are semiconductor devices that can control high power electronic signals and switch electronic devices on or off. They consist of three layers of a type of semiconductor material called silicon, with each layer having different electrical properties.
Where To Use Power Transistors
Power transistors are commonly used in power electronics, such as motor control and power supply circuits.
They can also be used in audio equipment, such as amplifiers and speakers.
Additionally, they are used in industrial applications, including automation and process control systems.
Key Features Of Power Transistors
High current and voltage handling capabilities.
Fast switching times, allowing for efficient power control.
Low power consumption, making them suitable for battery-powered devices.
Compact design, enabling use in space-constrained applications.
How To Use Power Transistors
First, ensure that the power transistor is properly connected to a suitable power source.
Select the correct operating voltage and current for the application.
Use a heat sink or other cooling method to prevent overheating during operation.
Maintain proper circuit design and layout to minimize electrical stress on the device.
How Power Transistors Is Manufactured
Power transistors are manufactured using advanced semiconductor processes, including epitaxial growth, ion implantation, and metalization. The exact process may vary depending on the specific device characteristics and manufacturer.
Technical Specification Of Power Transistors
Voltage Rating:
500V
Current Rating:
10A
Transition Frequency:
5MHz
Operating Temperature:
-40°C to +150°C
Weight:
10g
The technical specifications of power transistors provide critical information for designers and engineers to select the appropriate device for their applications. The voltage rating, current rating, transition frequency, operating temperature, and weight are essential parameters that determine the suitability and performance of the power transistor in a given circuit or system.
Description Of Power Transistors
Power transistors are designed to control and switch high power electronic signals with high efficiency and speed. They consist of three layers of a type of semiconductor material called silicon, with each layer having different electrical properties. This design allows for high current and voltage handling capabilities, fast switching times, and low power consumption.
Related Products & Synonyms Of Power Transistors
Related products to power transistors include other types of semiconductor devices, such as thyristors and triacs. Synonyms for power transistors include high-power transistor and electric power transistor.
