Process gauges are precision instruments used to measure various physical parameters in industrial processes, such as pressure, temperature, and flow rate. They are an essential tool for ensuring the smooth operation of plants, optimizing production, and maintaining product quality.
Where To Use Process Gauges
Process gauges can be used in a wide range of industries, including oil and gas, chemical processing, power generation, and water treatment. They are typically installed in locations where accurate measurements are critical, such as near pumps, valves, and other equipment.
Key Features Of Process Gauges
High accuracy and precision
Durable construction to withstand harsh environments
Easy-to-read displays for quick measurements
Robust connections for secure mounting
Range of options for customizing to specific applications
How To Use Process Gauges
Follow the manufacturer's instructions for installation and calibration
Select the correct gauge for the specific measurement parameter
Maintain regular checks and calibrations to ensure accuracy
Replace worn or damaged parts promptly to prevent errors
How Process Gauges Is Manufactured
The manufacturing process for process gauges typically involves the selection of high-quality materials, precise machining, and rigorous testing to ensure accuracy and durability.
Technical Specification Of Process Gauges
Pressure Range (bar)
0.1-10 bar
Dial Size (mm)
100-200 mm
Connection Type (mm)
1/2"-1" NPT
Case Material (material)
Stainless Steel 304
Window Material (material)
Acrylic Glass
The technical specification of process gauges is critical in ensuring accurate measurements and reliable operation. The selection of the correct gauge for a specific application requires careful consideration of factors such as pressure range, dial size, connection type, case material, and window material. Regular maintenance and calibration are essential to ensure the continued accuracy and reliability of the gauge.
Description Of Process Gauges

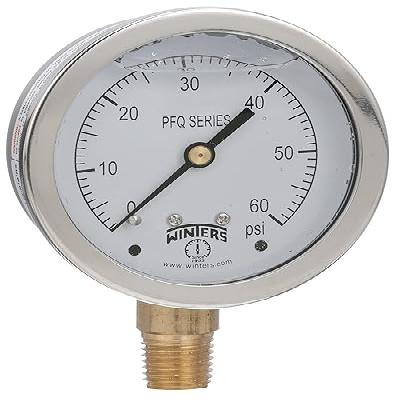

Process gauges are designed to provide precise measurements of various physical parameters in industrial processes. They typically consist of a dial face, a pointer, and a connection for mounting on equipment. The gauge is calibrated to display the measured value within a specific range.
Related Products & Synonyms Of Process Gauges
The related products of process gauges include other types of measurement instruments, such as pressure transmitters and flow meters. The synonyms for process gauges are "process gages."
