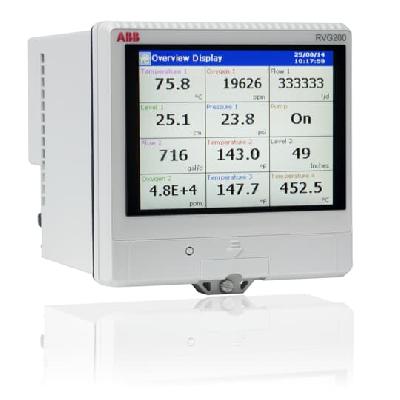

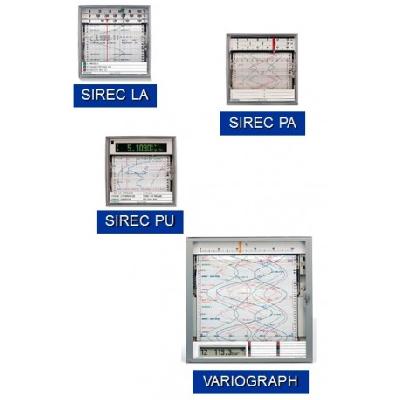

Process recorders are industrial devices used to monitor and display process parameters in real-time, enabling operators to make informed decisions. They are commonly employed in various industries, including chemical processing, oil refining, and power generation.
Where To Use Process Recorders
Process recorders can be used in various locations, including control rooms, operating areas, and monitoring stations. They are particularly useful in applications where real-time process data is essential for safe operation, efficient production, or compliance with regulatory requirements.
Key Features Of Process Recorders
Multiple input types for various process parameters
Diverse display options, including analog and digital displays
High-resolution displays for precise readings
Memory storage for historical data and trend analysis
Versatile communication interfaces for integration with control systems
Robust power supply options for reliable operation in harsh environments
Narrow operating temperature ranges for optimal performance
Compact designs for easy installation and space-saving
Mounting options for flexible placement
How To Use Process Recorders
Mount the recorder in a secure location with clear visibility
Connect the necessary inputs and power supply
Select the desired display type and configuration
Program the communication interface for integration with control systems
Monitor process parameters in real-time using the display
Analyze historical data and trends to optimize operations
How Process Recorders Is Manufactured
Process recorders are manufactured using a combination of electronic and mechanical components, including printed circuit boards (PCBs), display screens, and input/output modules. The manufacturing process involves precision engineering, assembly, and testing to ensure reliable operation in harsh environments.
Technical Specification Of Process Recorders
Number of Inputs:
16
Display Type:
Analog and Digital
Display Resolution:
High-Resolution LCD Display (800x480 pixels)
Memory Capacity:
16 GB internal memory with optional SD card expansion up to 128 GB
Communication Interface:
RS-485, RS-232, and Ethernet
Power Supply:
24 VDC power supply with optional redundant power supply configuration
Operating Temperature Range:
-20°C to +60°C (-4°F to +140°F)
Dimensions:
17.5 inches (W) x 9.5 inches (H) x 3.5 inches (D)
Mounting:
Top and rear mounting options available
The technical specifications of process recorders ensure that they meet the demands of industrial applications, providing reliable performance in extreme environments while offering flexible configuration options to suit specific needs. The detailed specifications listed above provide a comprehensive overview of the recorder's capabilities and features.
Description Of Process Recorders
Process recorders are industrial devices used to monitor and display process parameters in real-time, enabling operators to make informed decisions.
Related Products & Synonyms Of Process Recorders
Process recorders are closely related to other industrial products such as data loggers, process monitors, and control panels. Synonyms for process recorders include process indicators, parameter displays, and monitoring systems.
