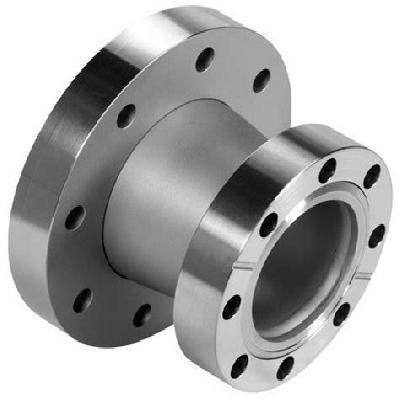

Reducing flanges are a type of pipe fitting used in industrial applications to connect pipes of different sizes or diameters. They are designed to reduce the flow rate of fluid through the system by increasing the resistance to flow.
Where To Use Reducing Flanges
Reducing flanges are commonly used in applications where a sudden change in pipe size is required, such as:
Pipe systems with multiple branches or connections
Applications requiring pressure drop control
Systems where a reduction in flow rate is necessary
Key Features Of Reducing Flanges
Reduces flow rate by increasing resistance to flow
Available in various materials, including carbon steel and stainless steel
Can be manufactured with different face types, such as raised face or flat face
How To Use Reducing Flanges
Select the correct size and material for the application
Ensure proper installation and alignment of the flange
Tighten the bolts to the recommended torque specification
How Reducing Flanges Is Manufactured
Reducing flanges are manufactured using a combination of machining and welding processes. The raw material is cut to size, then machined to the required dimensions, and finally welded together to form the final product.
Technical Specification Of Reducing Flanges
Material:
Carbon Steel
Size:
1/2" to 12"
Pressure Rating:
Class 150 to 2500
Facing Type:
Raised Face or Flat Face
Bolt Circle Diameter:
1/2" to 12"
The technical specification of reducing flanges is critical in ensuring the proper function and safety of the pipe system. The material, size, pressure rating, facing type, and bolt circle diameter are all important factors that must be carefully considered during selection and installation.
Description Of Reducing Flanges
Reducing flanges are a type of pipe fitting used to connect pipes of different sizes or diameters, reducing the flow rate of fluid through the system by increasing resistance to flow.
