Resistance boxes, also known as variable resistors or precision resistors, are electrical devices used to adjust the resistance in a circuit. They are commonly employed in various applications, including electronic circuits, instrumentation, and control systems.
Where To Use Resistance Boxes
Resistance boxes can be used in a wide range of industries, including:
Electronic manufacturing
Instrumentation and measurement
Control systems
Aerospace and defense
Automotive industry
Key Features Of Resistance Boxes
Adjustable resistance range
Precision dial or knob for accurate adjustment
High-quality insulation to prevent electrical shorts
Durable construction to withstand harsh environments
Compact design for easy installation
How To Use Resistance Boxes
Connect the resistance box to the circuit as per the manufacturer's instructions
Adjust the dial or knob to set the desired resistance value
Verify the adjusted resistance value using a multimeter or other measuring device
Repeat the process as needed to achieve the required resistance setting
How Resistance Boxes Is Manufactured
The manufacturing process for resistance boxes involves several stages, including:
Material selection and preparation
Circuit design and layout
Component assembly and testing
Quality control and inspection
Packaging and shipping
Technical Specification Of Resistance Boxes
Resistance Range:
10 k? to 1 M?
No. of Dials:
2-5 dials
Power Rating:
1 W to 10 W
Insulation Resistance Range:
100 M? to 1 G?
Terminal Type:
Banana plugs, BNC, or screw terminals
The technical specifications of resistance boxes are crucial in determining their suitability for specific applications. The resistance range, number of dials, power rating, insulation resistance range, and terminal type all play important roles in ensuring that the device functions correctly and safely.
Description Of Resistance Boxes

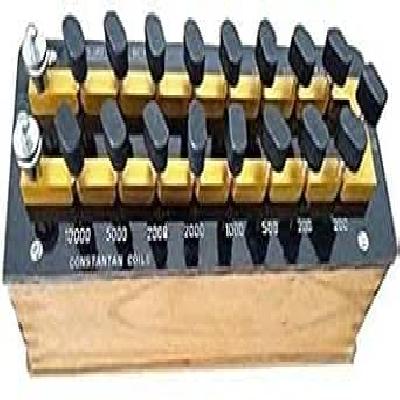

Resistance boxes are compact, precision devices used to adjust the resistance in a circuit. They consist of a resistive element, such as a wirewound or film resistor, and a dial or knob that allows for precise adjustment of the resistance value.
Related Products & Synonyms Of Resistance Boxes
The following products are related to resistance boxes:
Variable resistors
Precision resistors
Circuit breakers
Fuses
Synonyms for resistance boxes include variable resistors, precision resistors, and adjustable resistors.
