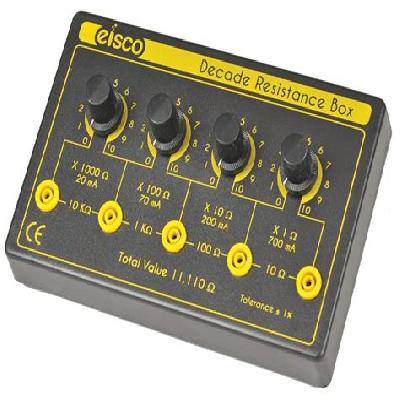

A Resistance Decade Box is a precision instrument used to measure and verify the accuracy of resistances in various electrical circuits. It typically consists of a series of decade switches that allow for precise adjustments of resistance values.
Where To Use Resistance Decade Box
Resistance Decade Boxes are used in a variety of applications, including:
Calibration laboratories
Quality control departments
Research and development facilities
Electrical testing and measurement labs
Key Features Of Resistance Decade Box
High accuracy and precision
Wide range of resistance values available
Durable construction with long lifespan
Easy to use and operate
Compact design for easy storage and transportation
How To Use Resistance Decade Box
First, ensure that the instrument is properly calibrated and adjusted according to the manufacturer's instructions.
Next, set the desired resistance value using the decade switches.
Once the resistance value is set, connect the leads of the Resistance Decade Box to the circuit under test.
Measure and record the actual resistance values using a multimeter or other measurement device.
How Resistance Decade Box Is Manufactured
The manufacturing process for a Resistance Decade Box typically involves the following steps:
Selection and procurement of high-quality materials, including precision resistors and decade switches.
Machining and assembly of the instrument's body and components.
Careful adjustment and calibration of the decade switches to ensure precise resistance values.
Final quality control checks and testing before packaging and shipping.
Technical Specification Of Resistance Decade Box
Brand:
ABC Instruments
Decade Range:
100 ? to 10 M? in 1% increments
Material:
Stainless steel and precision resistors
Display Type:
Digital LCD display with 4-digit resolution
Body Material:
Durable aluminum alloy for maximum strength and stability
The specification table above provides a detailed overview of the technical specifications of the Resistance Decade Box. The instrument is designed to provide high accuracy and precision, with a wide range of resistance values available in 1% increments. The durable construction ensures long lifespan and easy maintenance.
Description Of Resistance Decade Box
The Resistance Decade Box is a precision instrument designed to measure and verify the accuracy of resistances in various electrical circuits. It consists of a series of decade switches that allow for precise adjustments of resistance values, making it an essential tool for calibration laboratories, quality control departments, research and development facilities, and electrical testing and measurement labs.
