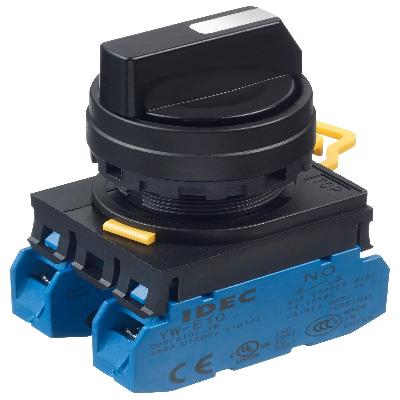

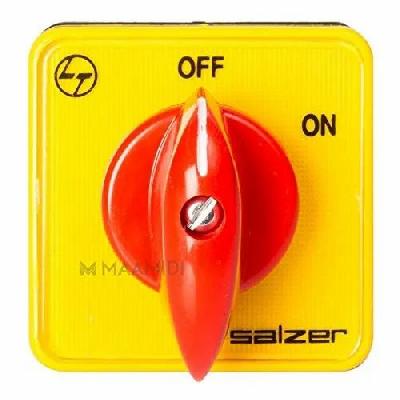

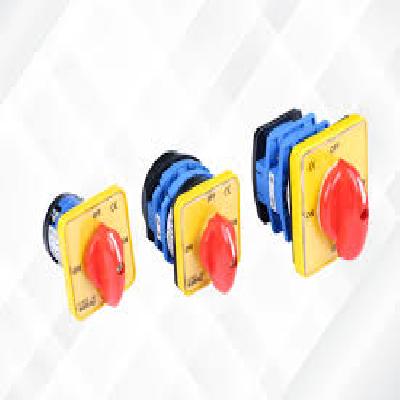

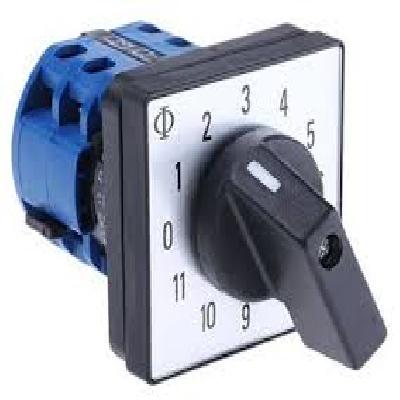

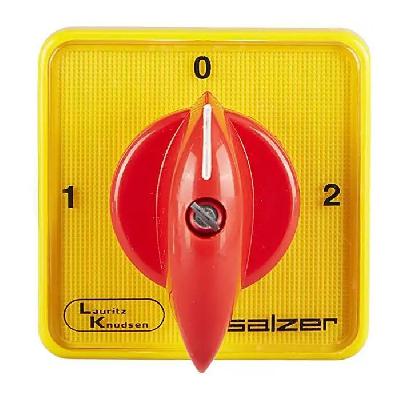

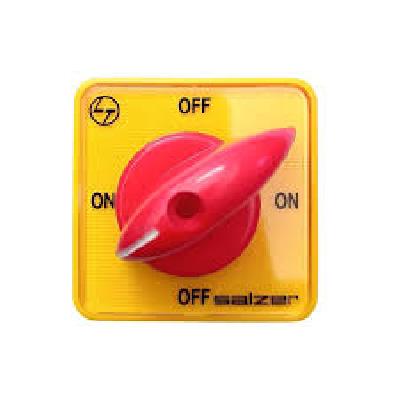

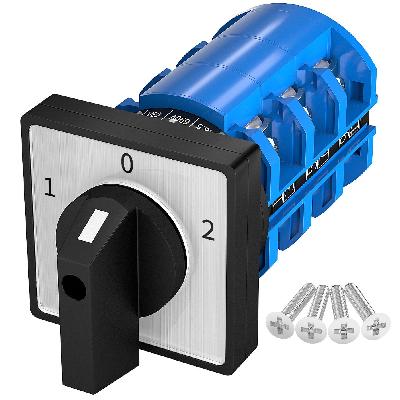

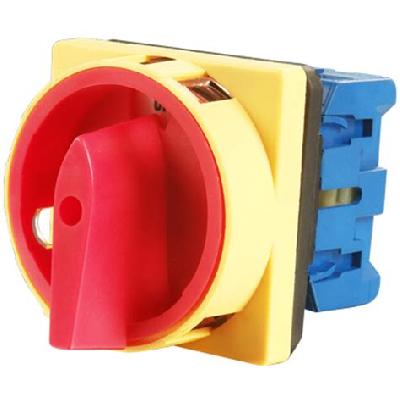

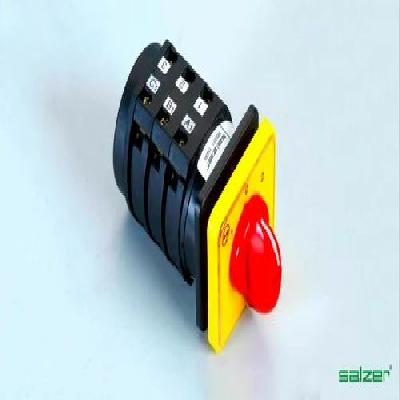

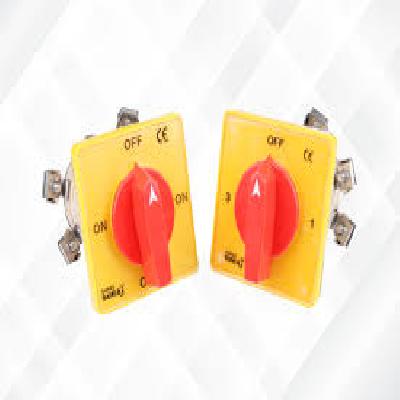

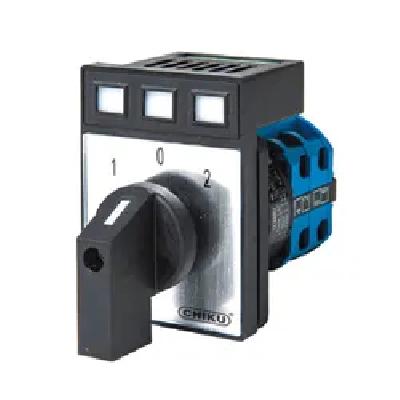

A rotary switch is an electrical switching device that uses a rotating mechanism to connect or disconnect multiple circuits. It is commonly used in industrial control panels, machinery, and appliances due to its reliability, durability, and ease of use.
Where To Use Rotary Switch
Rotary switches are ideal for applications where multiple settings or positions are required, such as in control panels, machinery, and appliances. They can be used in a variety of industries including manufacturing, construction, and healthcare.
Key Features Of Rotary Switch
Multiple positions and settings
Durable and reliable construction
Ease of use and maintenance
High current rating
Voltage resistance
How To Use Rotary Switch
Identify the correct position or setting needed for the application
Rotate the switch to the desired position
Verify that the switch is in the correct position using visual indicators or labels
Test the circuit to ensure it is functioning as expected
How Rotary Switch Is Manufactured
The manufacturing process of rotary switches involves several stages, including design, tooling, and assembly. The switch components are typically made from high-quality materials such as brass, copper, or plastic, which provide durability and resistance to corrosion.
Technical Specification Of Rotary Switch
Voltage:
220V, 240V, or custom voltage rating
Number of Positions:
2-10 positions, depending on the application
Current Rating:
10-100A, depending on the switch size and type
Actuator Type:
Rotary, linear, or custom actuator type
Material:
Brass, copper, plastic, or custom material
The technical specifications of a rotary switch are critical in determining its suitability for a particular application. The voltage rating ensures that the switch can handle the electrical current without overheating or failing. The number of positions and actuator type determine the switch's functionality and ease of use. The material selection affects the switch's durability and resistance to corrosion.
Description Of Rotary Switch
A rotary switch is a compact and reliable electrical switching device that offers multiple positions and settings. Its durable construction and high current rating make it suitable for industrial control panels, machinery, and appliances.
