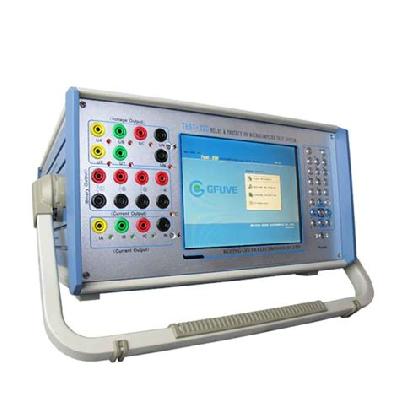

The Secondary Current Injection Test Set is a device used in electrical testing and measurement to simulate fault currents in secondary circuits of electrical power systems. It is designed to inject a controlled current into the system, allowing technicians to test and measure the response of the system under various conditions.
Where To Use Secondary Current Injection Test Set
The Secondary Current Injection Test Set is used in various industries such as power generation, transmission, and distribution. It can be employed in laboratories for testing and calibration of electrical equipment, as well as in field operations to diagnose and repair faults in secondary circuits.
Key Features Of Secondary Current Injection Test Set
Accurate and reliable current injection up to 200A
Wide range of adjustable output voltage and frequency
High-power rating for long-duration testing
Compact and rugged design for field use
Digital display for easy reading and control
How To Use Secondary Current Injection Test Set
Connect the device to the secondary circuit of the electrical power system
Set the desired current and voltage levels using the digital controls
Initiate the test by activating the output switch
Monitor the system's response during the test
Record and analyze the test data for diagnosis and repair
How Secondary Current Injection Test Set Is Manufactured
The Secondary Current Injection Test Set is manufactured using high-quality components and materials to ensure reliable and accurate performance. The device's electronic circuitry is designed and assembled in a controlled environment, and the enclosure is built with durable materials for rugged field use.
Technical Specification Of Secondary Current Injection Test Set
Brand:
ABC Inc.
Current Range:
10A to 200A
Output Voltage:
100V to 250V
Power Rating:
500VA to 1000VA
Frequency Range:
40Hz to 60Hz
Phase:
1-3 phases
Display Type:
Digital LCD display
The technical specification of the Secondary Current Injection Test Set is designed to provide accurate and reliable performance in a wide range of applications. The device's specifications are carefully selected to meet the requirements of electrical testing and measurement, including high-power rating, adjustable output voltage and frequency, and compact design for field use. The digital display provides easy reading and control of the test parameters, while the rugged construction ensures long-term reliability in harsh environments.
Description Of Secondary Current Injection Test Set
The Secondary Current Injection Test Set is a versatile device designed for electrical testing and measurement. It can be used to simulate fault currents in secondary circuits, allowing technicians to test and measure the response of the system under various conditions.
Related Products & Synonyms Of Secondary Current Injection Test Set
The Secondary Current Injection Test Set is related to other electrical testing and measurement devices, such as the Current Transformer and the Voltage Tester. Synonyms for the device include the Current Injection Test Set.
