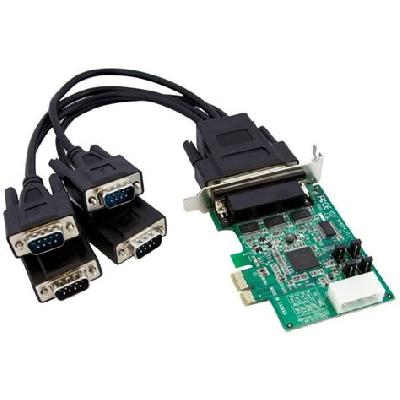

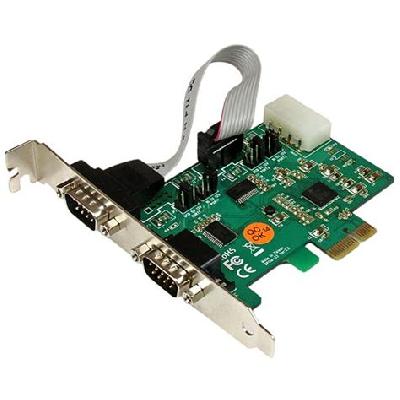

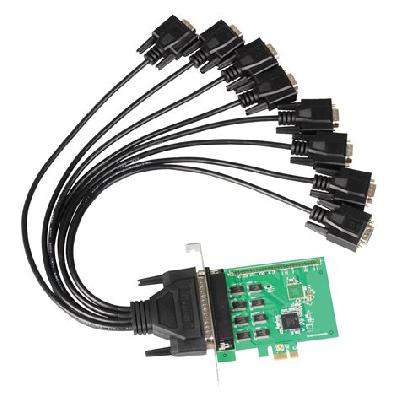

A serial card is a type of expansion card used in computers to add serial communication ports. It allows users to connect devices such as modems, printers, and other peripherals through a serial interface. The card typically contains one or more serial ports and is connected to the system bus via an ISA, PCI, or PCIe slot.
Where To Use Serial Card
Serial cards are commonly used in industrial and commercial settings where devices need to be connected through a serial interface. This includes but is not limited to:
Industrial automation systems
Process control systems
Data acquisition and logging applications
Remote monitoring and control systems
Key Features Of Serial Card
Compliant with industry standards such as RS-232, RS-422, and RS-485
Supports high-speed data transfer rates up to 1 Mbps or more
Typically has one or more serial ports, each with its own configuration settings
Can be configured to work in various modes such as simplex, half-duplex, and full-duplex
Has built-in FIFO (First-In-First-Out) buffers for efficient data transfer
May have features such as flow control, parity checking, and error detection
How To Use Serial Card
Insert the serial card into a free expansion slot on the motherboard
Configure the serial ports using software or through jumpers and switches on the card
Connect devices to the serial ports using standard DB9 connectors or other compatible interfaces
Ensure proper power supply to the card, typically via a PCI slot or external power adapter
How Serial Card Is Manufactured
The manufacturing process of serial cards involves several stages:
Design and simulation using specialized software tools
Circuit board design, fabrication, and assembly
Component placement, soldering, and testing
Final inspection, packaging, and labeling
Technical Specification Of Serial Card
Number of Ports:
2-4 ports
Interface:
RS-232, RS-422, and RS-485
Power Consumption:
Typically 1-2 W
Dimensions:
64 mm x 30 mm x 12 mm
The technical specification of a serial card includes details such as the number of ports, interface types supported, power consumption, and dimensions. These specifications ensure that the card meets industry standards and requirements for reliable operation in various environments.
Description Of Serial Card
A serial card is a compact, low-power expansion card designed for industrial and commercial applications. It features multiple serial ports with various interfaces, including RS-232, RS-422, and RS-485. The card is built with high-quality components and has a robust design to ensure reliable operation in harsh environments.
