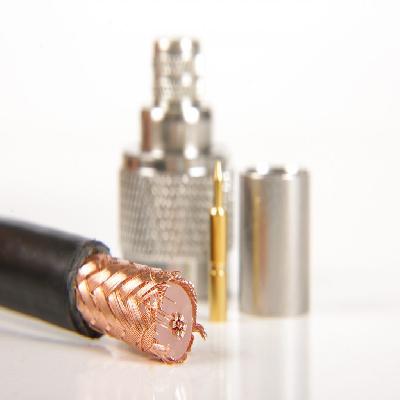

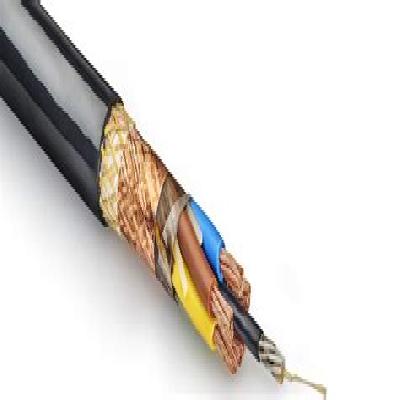

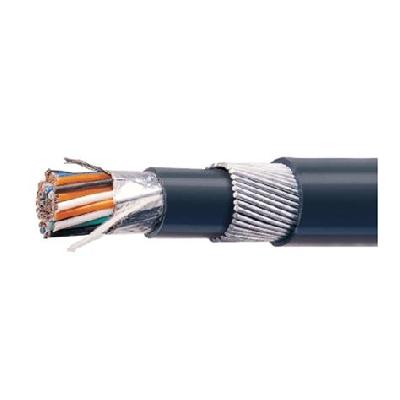

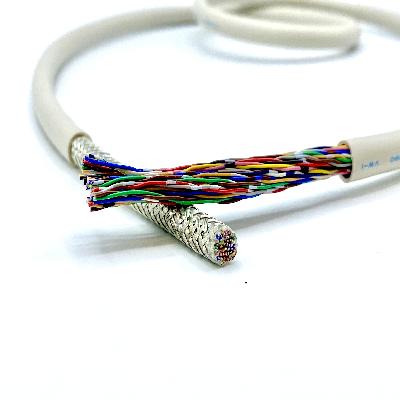

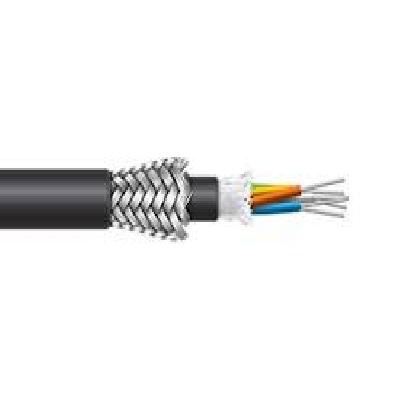

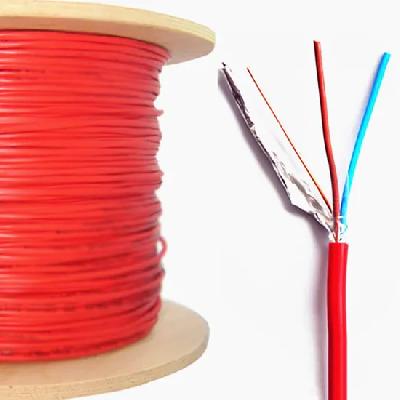

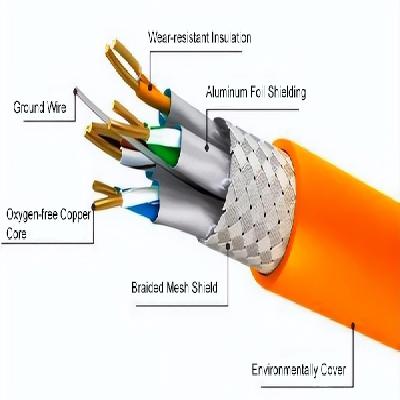

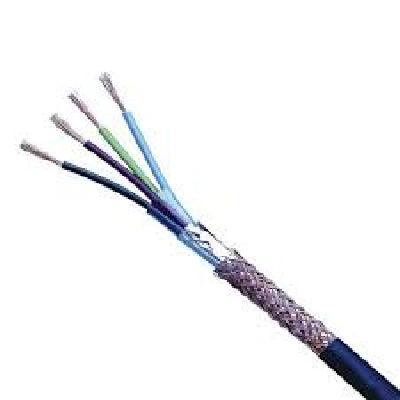

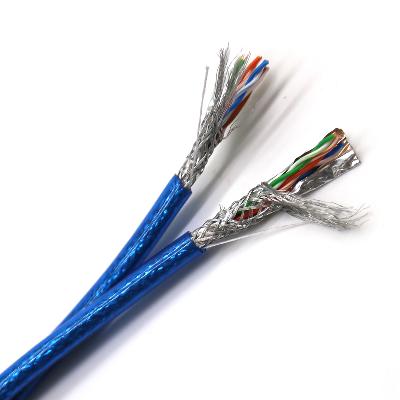

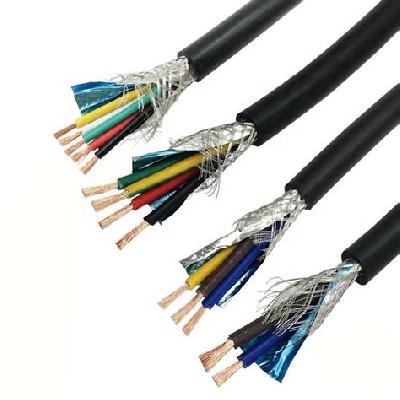

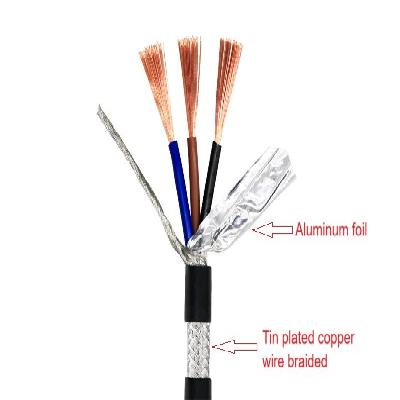

Shielded cables are a type of cable that has an additional layer of insulation around the conductors to protect them from electromagnetic interference (EMI) and radio-frequency interference (RFI). This extra layer, known as the shield, is typically made of a conductive material such as copper or aluminum.
Where To Use Shielded Cables
Shielded cables are used in various applications where EMI and RFI are a concern, such as:
Computer networks
Industrial control systems
Audio-visual equipment
Radios and communication devices
Key Features Of Shielded Cables
Shielding effectiveness up to 100 dB
Flexible and durable construction
Available in various lengths and configurations
Meets or exceeds industry standards for EMI/RFI protection
How To Use Shielded Cables
Select the correct cable length and configuration for your application
Connect the shielded cable to the desired device or equipment
Ensure proper grounding of the shield to prevent EMI/RFI interference
Test the cable for any defects or damage before use
How Shielded Cables Is Manufactured
Shielded cables are manufactured using a variety of materials and techniques, including:
Copper or aluminum shielding
Insulation materials such as PVC or Teflon
Conductor materials such as copper or silver
Mechanical stripping and crimping processes
Technical Specification Of Shielded Cables
Cable Length:
Up to 10 meters
Connector Type:

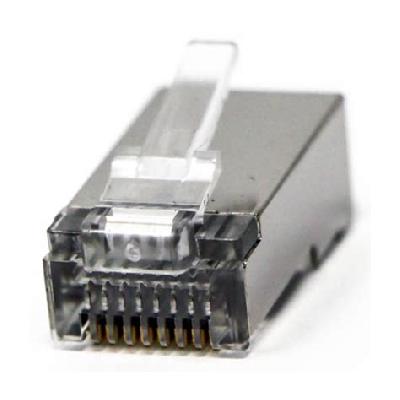

RJ45, BNC, or custom
Cable Thickness:
0.5 mm to 1.5 mm
Compatibility:
CAT5, CAT6, or custom
The technical specifications of shielded cables are critical in determining their suitability for a particular application. The cable length, connector type, cable thickness, and compatibility all play important roles in ensuring that the cable can transmit data effectively without interference.
Description Of Shielded Cables
Shielded cables are a type of cable that has an additional layer of insulation around the conductors to protect them from electromagnetic interference (EMI) and radio-frequency interference (RFI). This extra layer, known as the shield, is typically made of a conductive material such as copper or aluminum.
Related Products & Synonyms Of Shielded Cables
Shielded cables are also known by other names, including:
